Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Valve Body >> Locations >> Lower Control Valve Body Assembly

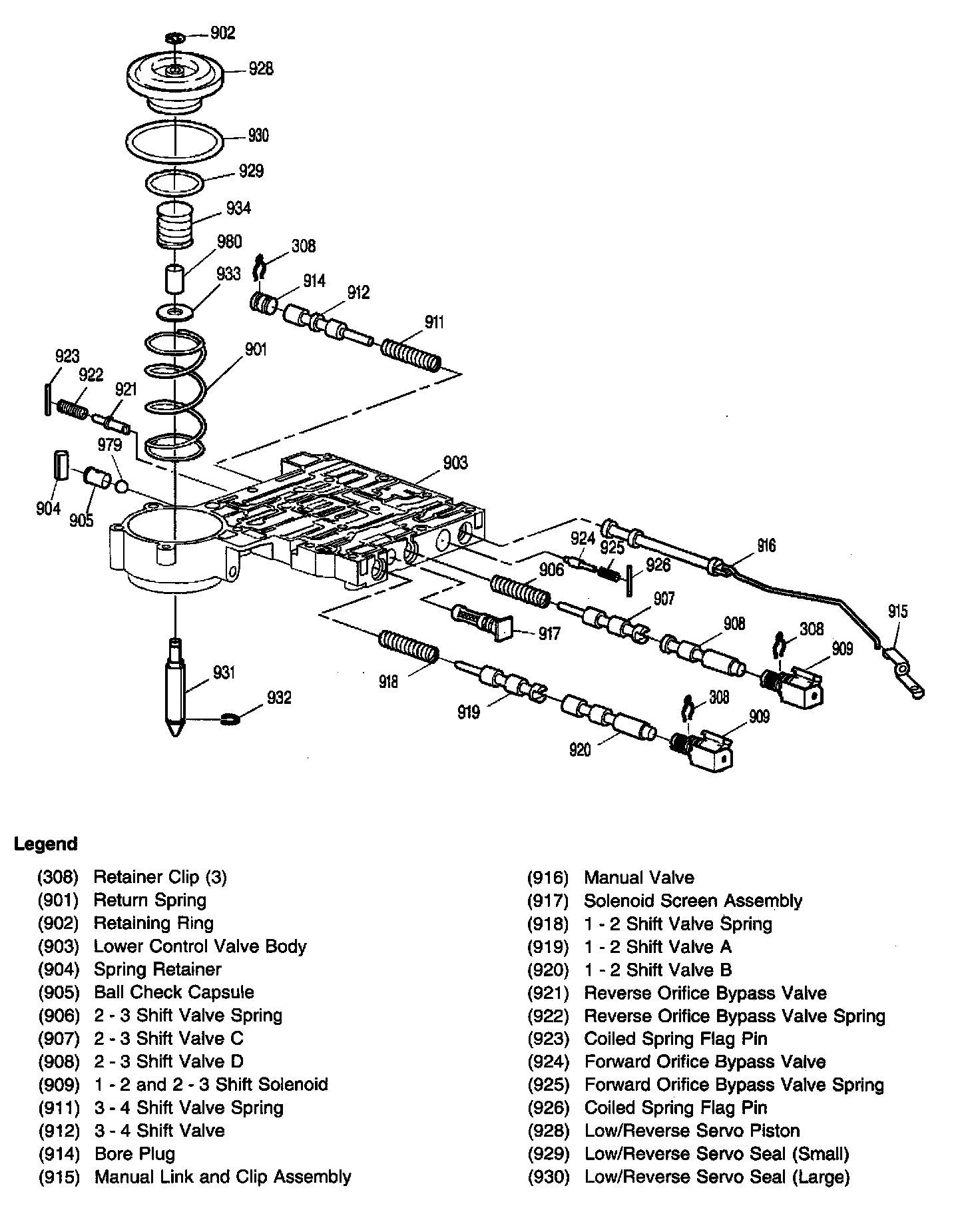

Lower Control Valve Body Assembly

Part 1 Of 2:

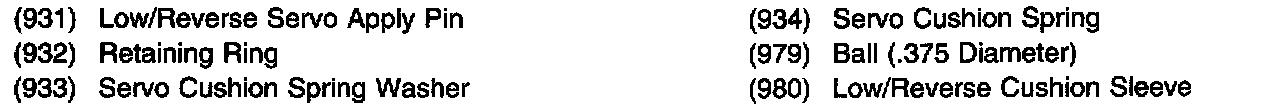

Part 2 Of 2:





Lower Control Valve Body Assembly
