58. Channel Plate Assemble

- Tools Required
- J 39630-1 Guide Pins
- J 39630-2 Guide Pins

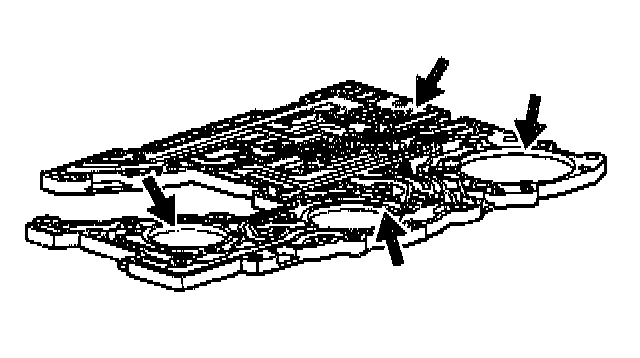

1. Inspect the lower channel plate accumulator bores and mating surfaces for scratches or damage.

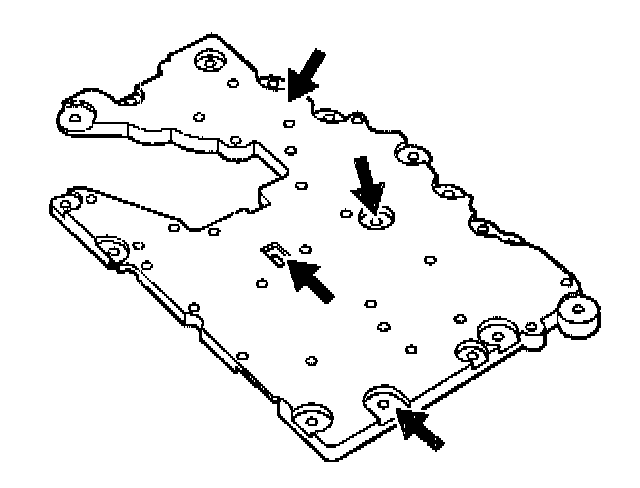

2. Inspect the bottom side of the lower channel plate for damage to the bolt holes or debris in passages.





3. Insert the J 39630-1 into the lower channel plate. Then rest the channel plate on the pin heads.
4. Install the J 39630-2 into the channel plate.

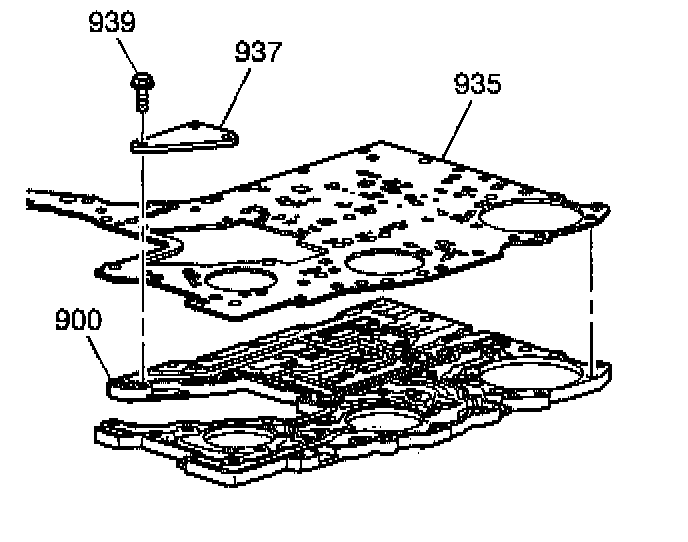

5. Install the spacer plate, gasket assembly (935) onto the lower channel plate (900). Install the spacer plate support cover (937) and install the three spacer plate support cover bolts (939).
- Tighten the bolts in a start pattern to 8-14 Nm (6-10 ft. lbs.).
