41. Thrust Bearings Installation

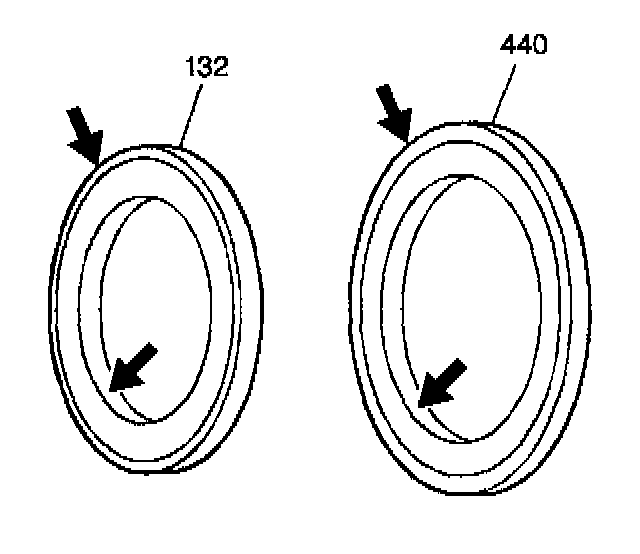

1. Inspect the drive sprocket thrust bearing (132) and the driven sprocket thrust bearing (417) for damage.

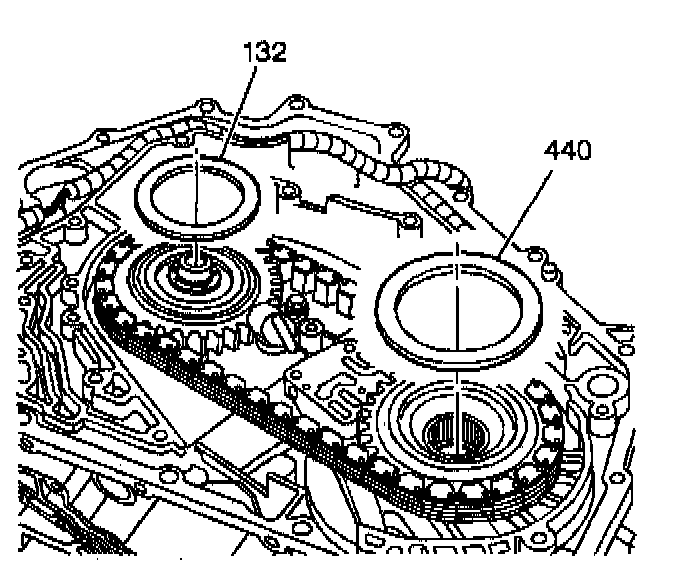

2. Install the drive and driven sprocket thrust bearings onto the sprockets.
