18. 2ND Clutch Plates and Reverse Clutch Removal
18. 2ND Clutch Plates and Reverse Clutch Removal

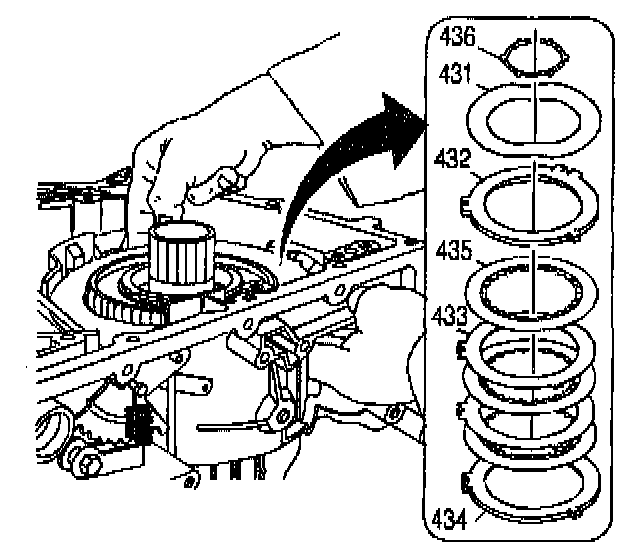

1.
Remove the second clutch steel (433) and fiber (435) plates. Push up near the scavenge tube channel and the bottom pan side.
2.
Remove the reverse clutch support thrust washer (436).
