Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Locations >> Ball Check Valve >> Accumulator Housing (Lower Channel Plate Side)

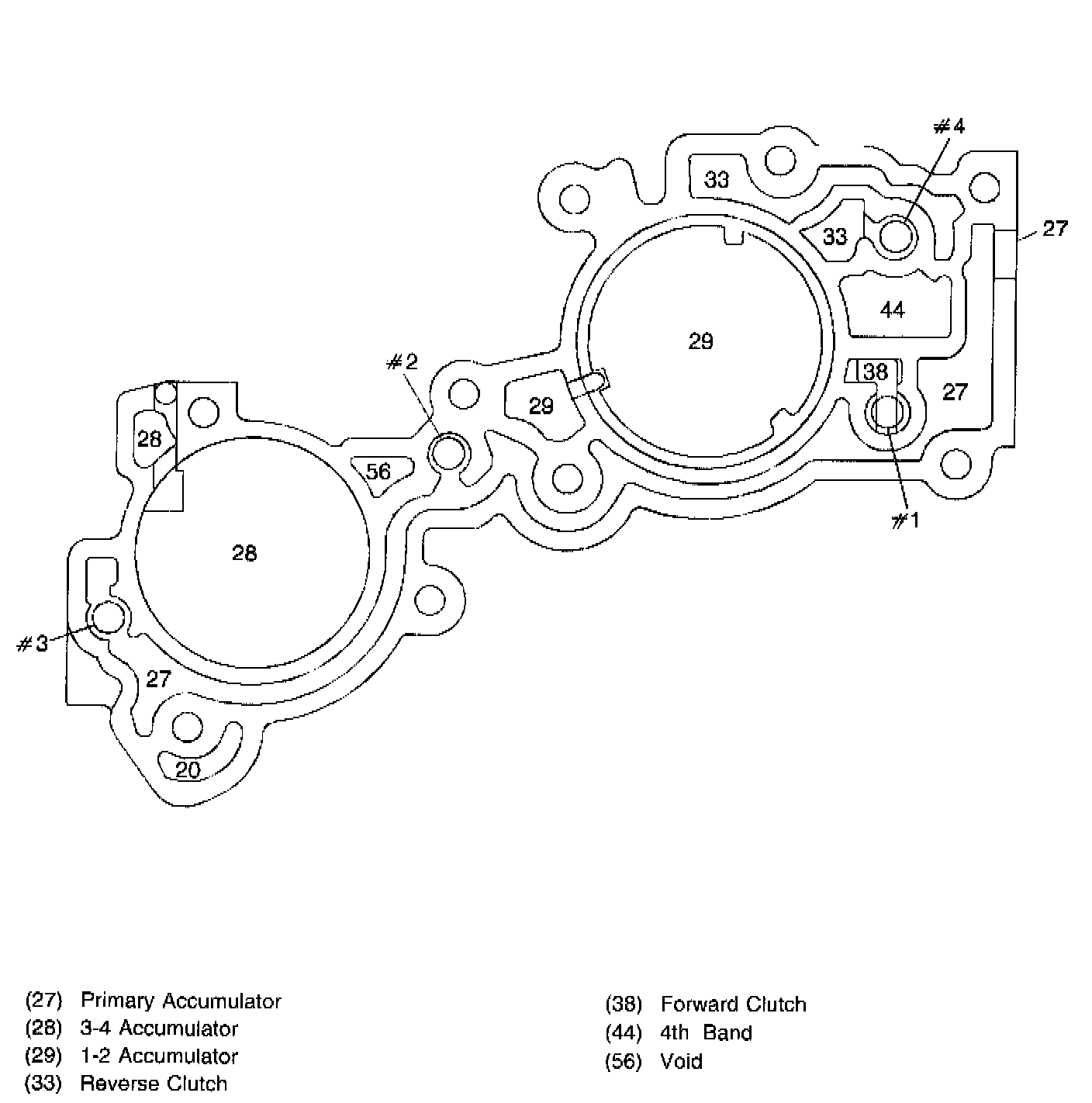

Accumulator Housing (Lower Channel Plate Side)
