Rear

REMOVAL PROCEDURE

^ Tools Required
- J 6627-A Wheel Stud Remover

1. Raise and support the vehicle.
2. Remove the tire and wheel assembly.
3. Suspend the caliper.
4. Remove the rotor.

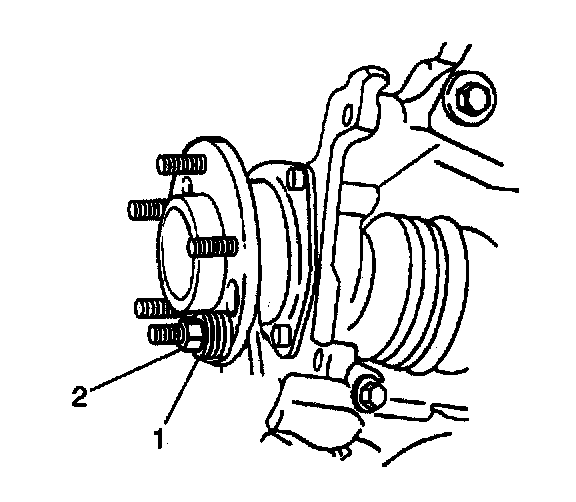

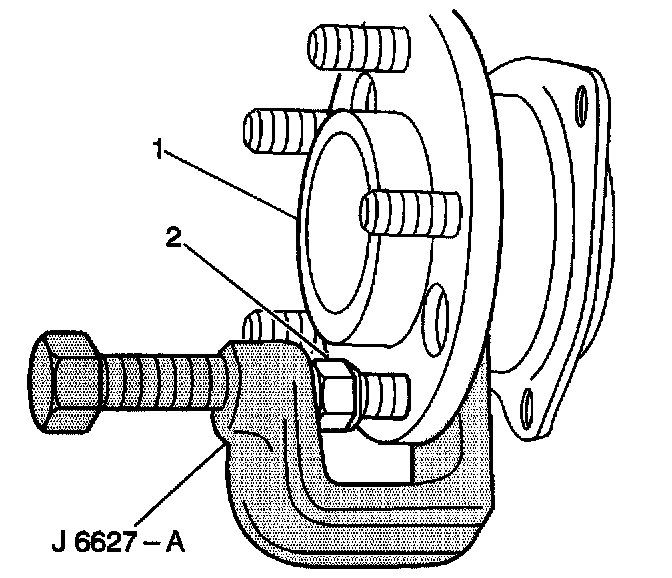

5. Remove the wheel stud (2) with the J 6627-A.

INSTALLATION PROCEDURE
1. Install the wheel stud.
2. Install the rotor.





NOTICE: Refer to Fastener Notice in Service Precautions.

3. Install the caliper and new caliper mounting bracket bolts.
^ Tighten the caliper mounting bracket bolts to 113 Nm (83 ft. lbs.).
^ Tighten the parking brake cable bracket bolt to 43 Nm (43 ft. lbs.).

4. Install the tire and wheel assembly.
5. Lower the vehicle.
