Strut and Knuckle Scribing

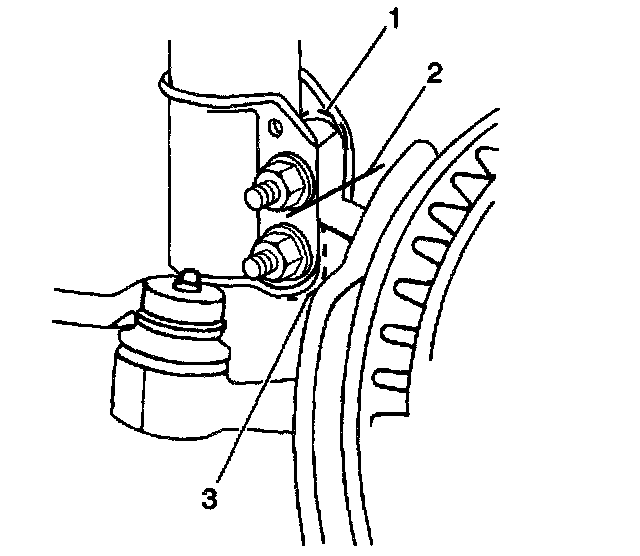

1. Using a sharp tool, scribe the inboard surface of the strut along the upper knuckle radius (1).
2. Scribe the knuckle along the lower curve of the strut (3).
3. Make a scribe mark across the strut/knuckle interface (2).
4. On reassembly, carefully match the marks to the components.
