Electronic Suspension Control Module Replacement

REMOVAL PROCEDURE





1. Remove the trunk front trim panel.
2. Access the rear electronics compartment.

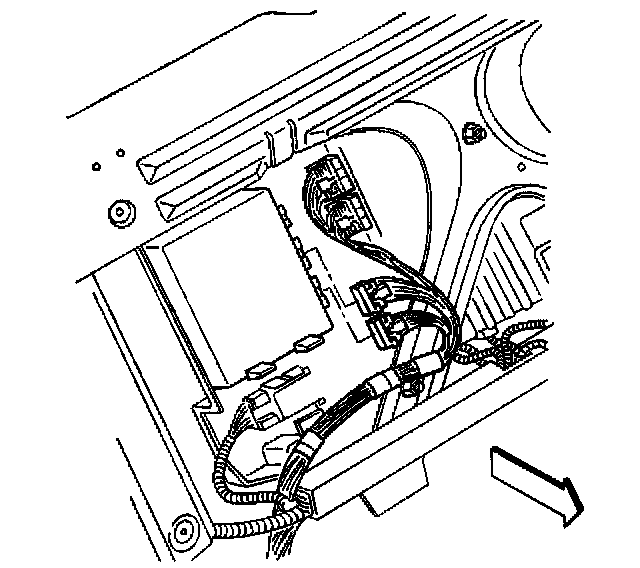

3. Disconnect the electrical connectors from the CVRSS control module.
4. Remove the CVRSS control module from the right electronics bay.

INSTALLATION PROCEDURE





1. Install the CVRSS control module in the right electronics bay.
2. Connect the electrical connectors to the CVRSS control module.
3. Close the rear electronics compartment.
4. Install the trunk front trim panel.
5. Perform the CVRSS Control Module Calibration. Testing and Inspection
6. Perform the ALC Trim Height Adjustment.
