Rear Position Sensor Replacement Electronic Suspension

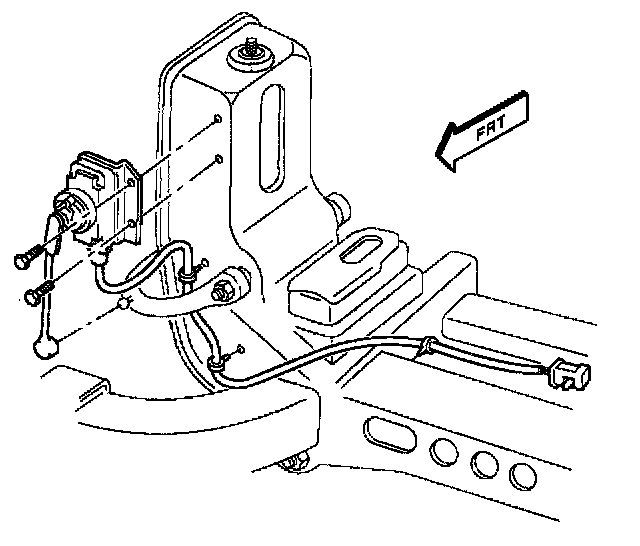

REMOVAL PROCEDURE1. Raise the vehicle.
2. Remove the wheel from the vehicle.
3. Disconnect the sensor harness connector from the vehicle harness connector.
4. Disconnect three sensor harness clips from the vehicle.
5. Disconnect the sensor link from the ball stud.
6. Remove the two screws and the position sensor from the vehicle.
INSTALLATION PROCEDURE
NOTICE: Refer to Fastener Notice in Service Precautions.
1. Install the position sensor on the vehicle with two screws.
- Tighten two screws to 15 Nm (11 ft. lbs.).
2. Connect the sensor link to the ball stud.
3. Connect the three sensor harness clips onto the vehicle.
4. Connect the sensor harness connector to the vehicle harness connector.
5. Install the wheel onto the vehicle.
6. Lower the vehicle.
7. Perform the ALC Trim Height Adjustment.
