Rear

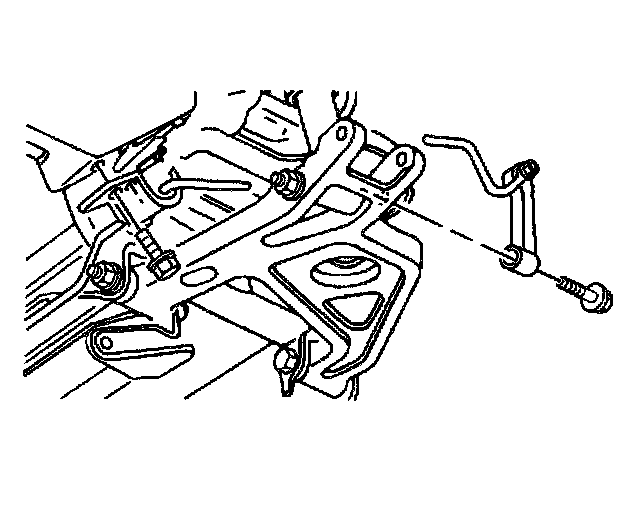

REMOVAL PROCEDURE
1. Raise the vehicle.
2. Remove the wheel and tire assembly.





3. Remove the link lower nut.
4. Remove the link upper nut.
5. Remove the link.

INSTALLATION PROCEDURE





1. Install the link upper nut.

NOTICE: Refer to Fastener Notice in Service Precautions.

2. Install the link lower nut.
^ Tighten the upper link nut to 52 Nm (38 ft. lbs.).
^ Tighten the lower link nut to 60 Nm (44 ft. lbs.).

3. Install the wheel and tire assembly.
4. Lower the vehicle.
