Front

REMOVAL PROCEDURE





1. Raise and support the vehicle.
2. Remove the tire and wheel.
3. Remove the road sensing position sensor from the lower control arm.
4. Using a pair of needle nose pliers, hold the ball stud and remove the nut from the upper and lower attachment.

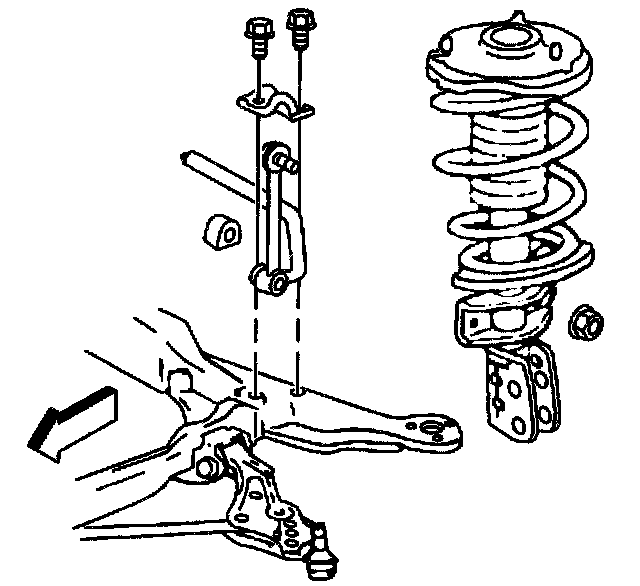

5. Remove the stabilizer link.

INSTALLATION PROCEDURE





1. Install the stabilizer link.

NOTICE: Refer to Fastener Notice in Service Precautions.

2. Install the upper and lower stabilizer link nuts.
^ Tighten the nuts to 55 Nm (41 ft. lbs.).

3. Install the road sensing position sensor.
4. Install the tire and wheel.
^ Tighten the wheel nuts to 140 Nm (100 ft. lbs.).

5. Lower the vehicle.
