Control Arm Bushing Replacement (Lower Control Arm)

REMOVAL PROCEDURE

CAUTION: Place Jackstand under front of vehicle to prevent vehicle from falling from hoist.

1. Raise and support the vehicle.
2. Remove the tire and wheel assemblies.
3. Support the inboard end of the lower control arm with a transmission jack. Position the brackets on the jack in order to securely hold the control arm.

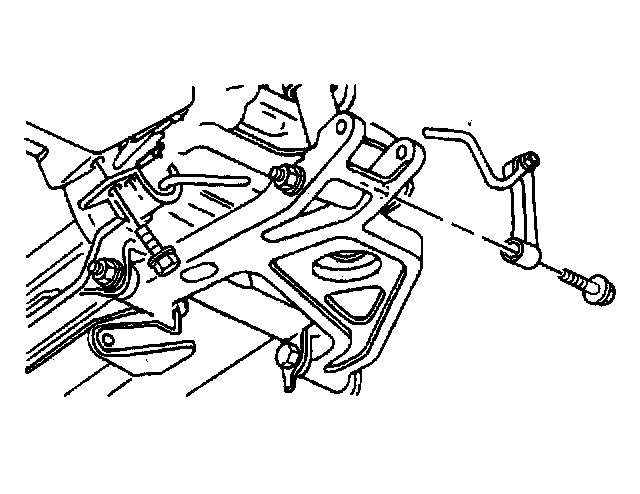

4. Remove the stabilizer link lower attachment.

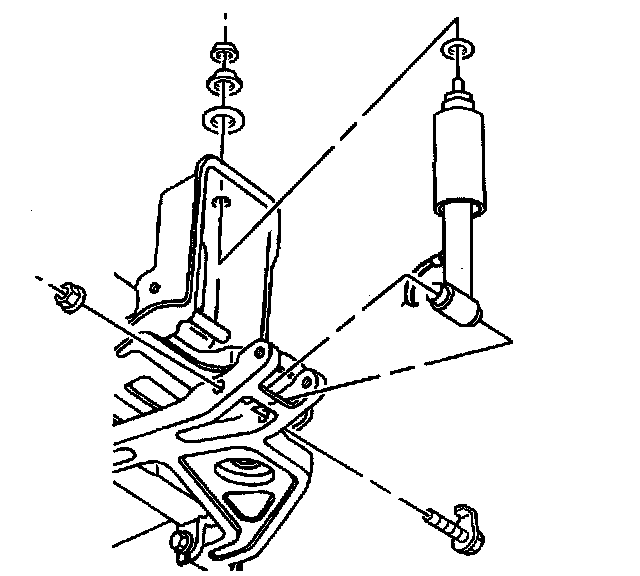

5. Remove the shock absorber lower attachment.

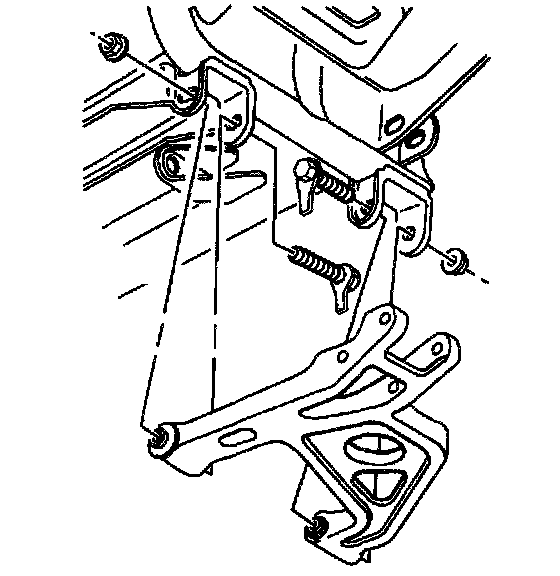

6. Remove the outboard lower control arm nuts and bolts.
7. Slowly lower the transmission jack in order to relieve the spring pressure.
8. Pull the lower control arm down in order to remove the spring.
9. Lower the control arm outboard bolt, if you are removing the control arm.

INSTALLATION PROCEDURE

NOTICE: Refer to Fastener Notice in Service Precautions





1. Position the control arm in the vehicle. Install the inboard control arm bolt and nut.
- Tighten the lower control arm outer nut to 102 Nm (75 ft. lbs.).

2. Install the spring and insulators.

IMPORTANT: In order to insure proper orientation of the spring, rest the spring (without insulators) on a flat surface. The spring will stand up straight when resting on its lower end, but will lean or tip when resting on its top end.

Raise the transmission jack under the inboard end of the lower control arm in order to slightly compress the spring.

3. Insert the outboard lower control arm nuts and bolts.





4. Install the shock absorber lower attachment.





5. Install the stabilizer link lower attachment.
6. Remove the transmission jack. Place the jack under the outboard end of the lower control arm in order to bring the suspension to the suspension's design position. The inner control arm nuts must be tightened in the design position in order to reduce wind up in the bushings.
- Tighten the stabilizer link lower nut to 60 Nm (44 ft. lbs.).
- Tighten the shock absorber lower nut to 102 Nm (75 ft. lbs.).
- Tighten the lower control arm inner nuts to 102 Nm (75 ft. lbs.).

IMPORTANT: Perform a rear wheel alignment if you loosened the inner lower control arm fasteners.

7. Install the tire and wheel assemblies.
