Tie Rod Replacement - Inner

DISASSEMBLY PROCEDURE





1. To remove the rack and pinion boot and the breather tube; refer to Rack and Pinion Boot and Breather Tube Replacement - Off Vehicle in Tie Rod Boot.

IMPORTANT: The rack must be held during removal and installation of the inner tie rod to prevent damage to the rack.

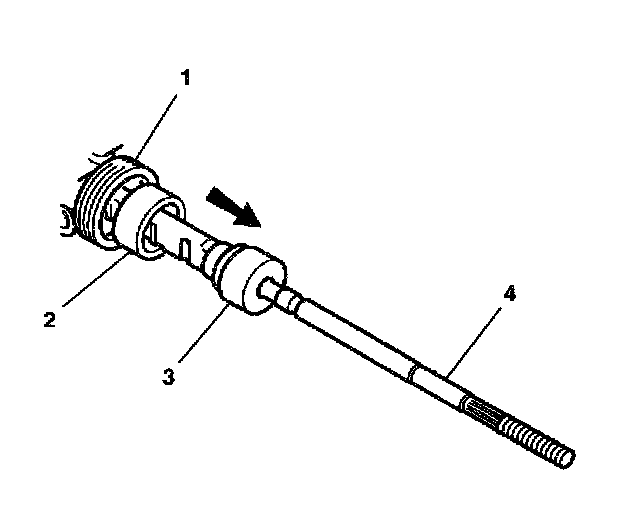

Remove the shock dampener (2) from the inner tie rod assembly (5).

2. Slide the shock dampener (2) back on the rack (1).

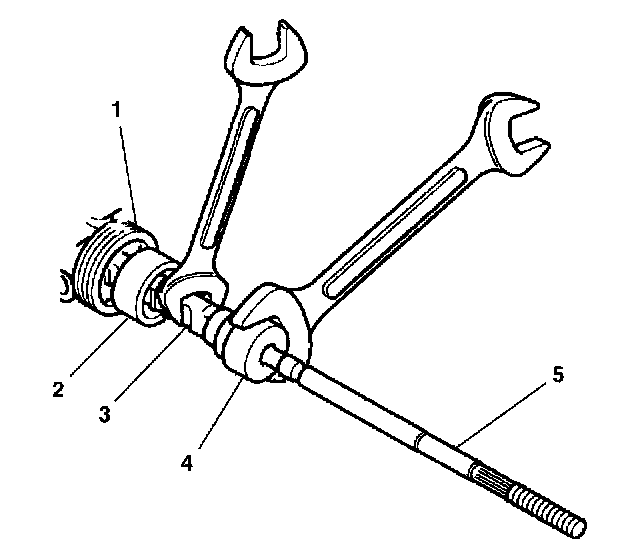

3. Remove the inner tie rod assembly (5) from the rack assembly (1) as follows:
3.1. Place a wrench on flats of rack assembly (3).
3.2. Place another wrench on the flats of the inner tie rod housing (4).
3.3. Rotate the inner tie rod housing (4) counterclockwise until the inner tie rod (5) separates from the rack (1).

ASSEMBLY PROCEDURE





IMPORTANT: The rack must be held during removal and installation of the inner tie rod to prevent damage to the rack.

Hold the rack.

1. Slide the shock dampener (2) forward onto the rack (1).

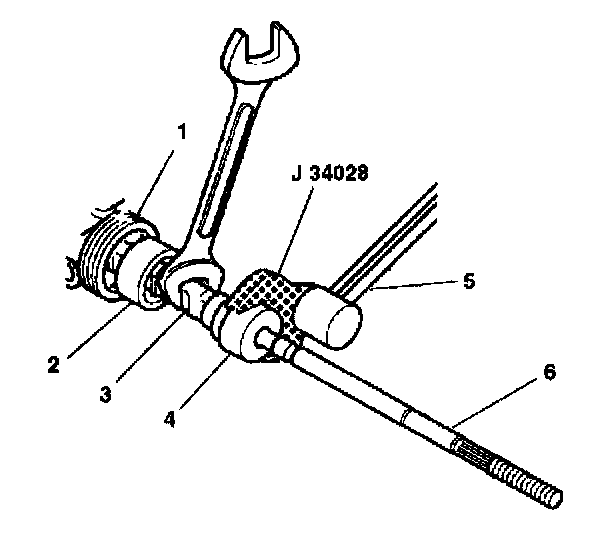

2. Attach the inner tie rod (6) on the rack (1) as follows:
2.1. Place a wrench on the flats of the rack assembly (3).
2.2. Place a torque wrench (5) on the flats of the inner tie rod housing (4).
- Tighten Inner tie rod to 100 Nm (74 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

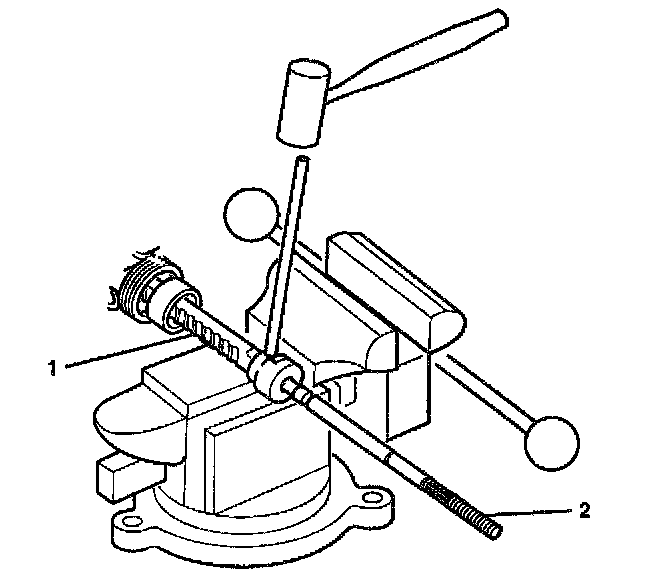

3. Place the piston and steering rack (1) and the inner tie rod (2) in a vise.

IMPORTANT: Make sure the inner tie rod (2) rocks freely in the housing before staking the inner tie rod housing.

4. Stake both sides of the inner tie rod housing to the flats on the rack using a hammer and a drift.





5. Insert a 0.25 mm feeler gauge (1) between the piston and steering rack (1) and the inner tie rod housing (3). The feeler gauge (1) must not pass between the piston and steering rack (2) and the inner tie rod housing stake.





6. Slide the shock dampener (2) over the inner tie rod housing (3) until the front lip of the shock dampener (2) bottoms against the inner tie rod housing (3).
7. To assemble the rack and pinion boot and the breather tube; refer to Rack and Pinion Boot and Breather Tube Replacement - Off Vehicle.
