Tie Rod End Replacement - Outer - Off Vehicle

DISASSEMBLY PROCEDURE

- Tool Required
- J 24319-01 Universal Steering Linkage Puller

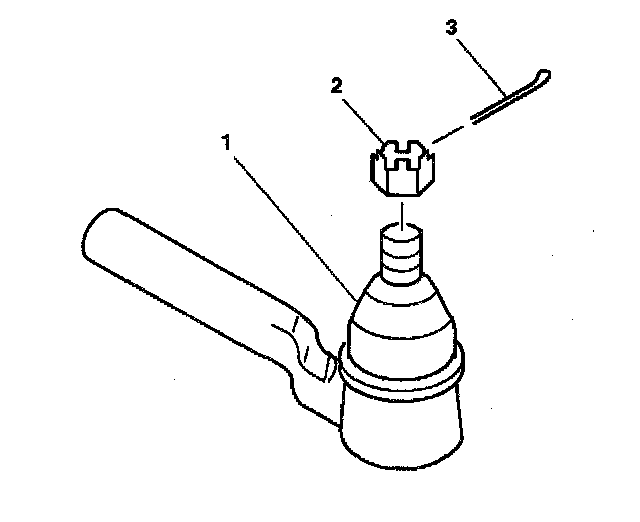

1. Pull the cotter pin (33) and the hex slotted nut (2) from outer tie rod assembly (1).





2. Loosen the jam nut (2) on the inner tie rod assembly (1).

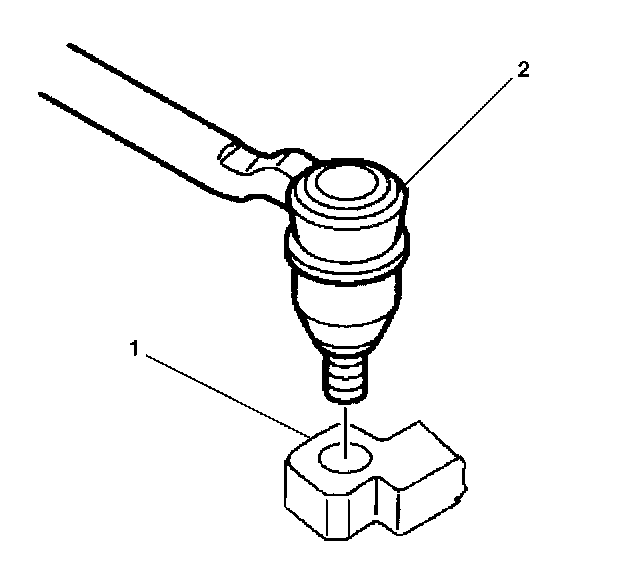

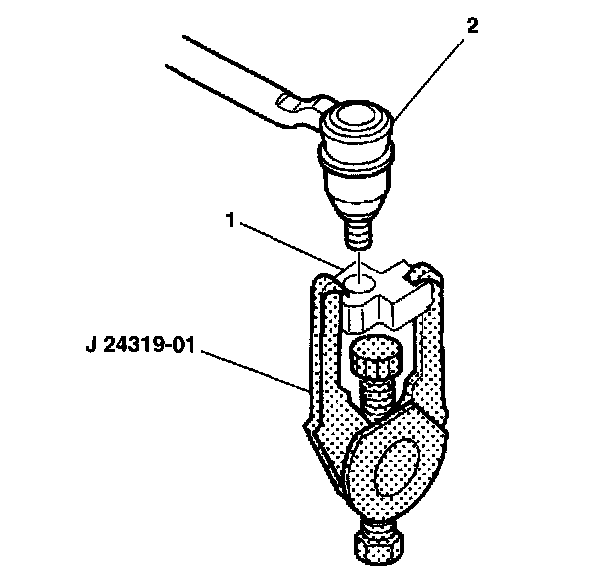

3. Remove the outer tie rod assembly (2) from the steering knuckle (1) using J24319-01.

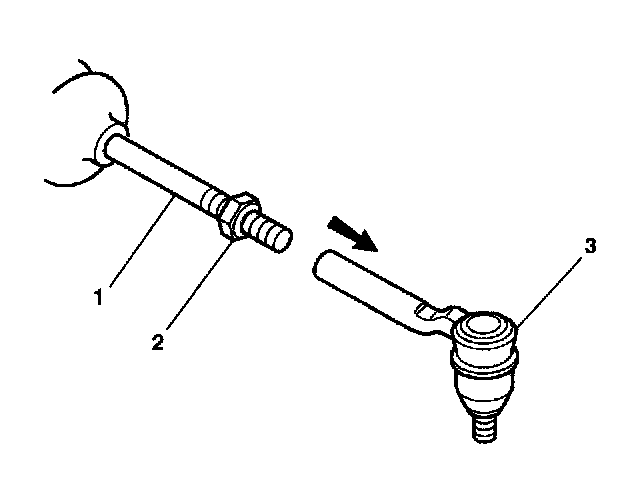

4. Remove the outer tie rod assembly (3) from the inner tie rod assembly (1).

ASSEMBLY PROCEDURE

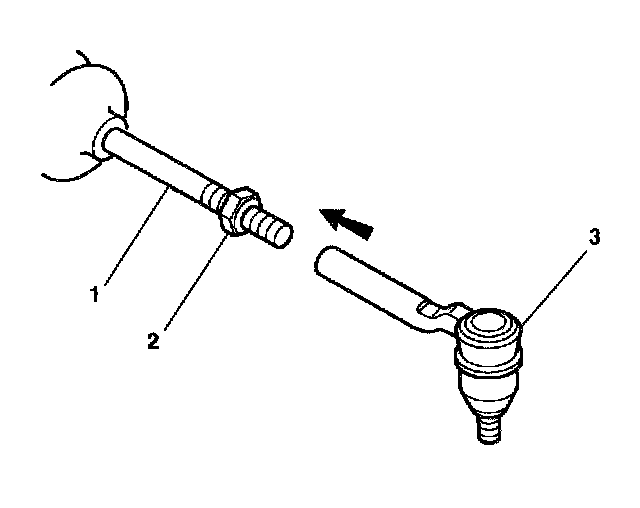

1. Connect the outer tie rod assembly (3) to the inner tie rod (1). Do not tighten the jam nut (2).





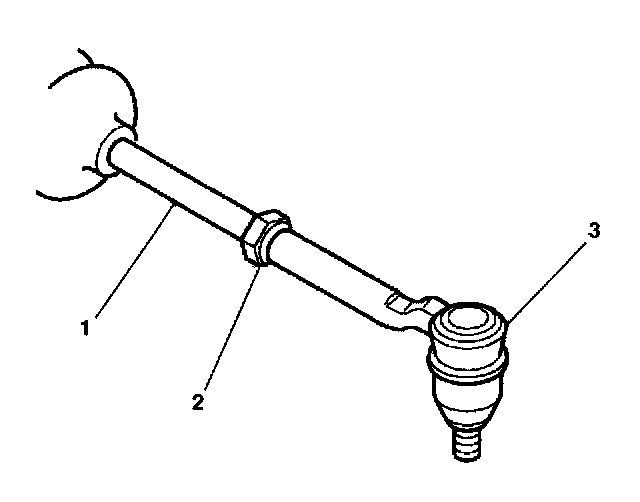

2. Connect the outer tie rod assembly (2) to the steering knuckle (1).





3. Connect the hex slotted nut (2) to the outer tie rod stud (1).
- Tighten the hex slotted nut (2) to 47 Nm (35 ft. lbs.). Align the coffer pin slot by tightening the hex slotted nut (2) up to 1/6 additional turn, or 70 Nm (52 ft. lbs.) maximum. Do not back off the hex slotted nut (2) for the cotter pin (3) insertion.

NOTICE: Refer to Fastener Notice in Service Precautions.

4. Install the cotter pin (3) into the hole in the tie rod stud.

IMPORTANT: Be sure the rack and pinion boot is not twisted or puckered during toe adjustment.

Adjust toe by turning the inner tie rod. Follow recommended manufacturer specifications; refer to Front Toe Adjustment.

- Tighten the hex jam nut against the outer tie rod to 68 Nm (50 ft. lbs.).
