Steering Column Filler

REMOVAL PROCEDURE
1. Remove the steering column trim.
2. Remove the steering column opening bracket.

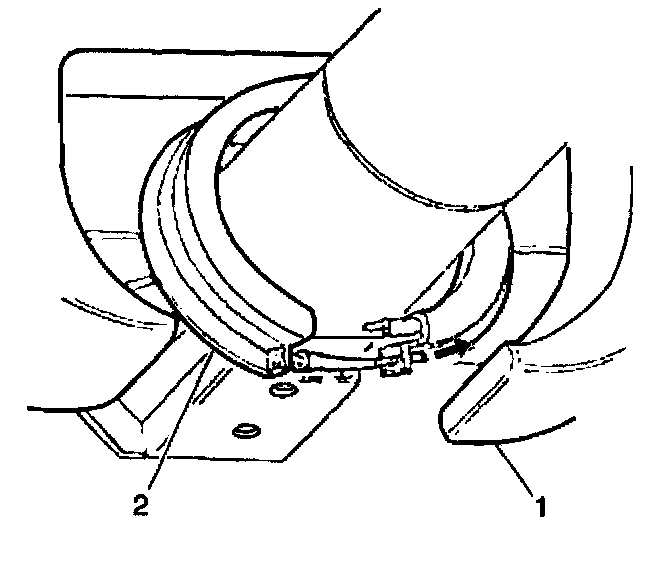

3. Unlock the trim collar (2).
4. Remove the trim collar (2).

INSTALLATION PROCEDURE
1. Pull the ends of the collar (2) around the steering column assembly.
2. Engage the collar ends.
3. Install the steering column bracket.
4. Install the steering column filler trim.
