Turn Signal & Multifunction Switch - Assemble

ASSEMBLY PROCEDURE





1. Feed the connector through the column.
2. Install the turn signal switch assembly onto the race and upper shaft assembly.





NOTICE: Refer to Fastener Notice in Service Precautions.

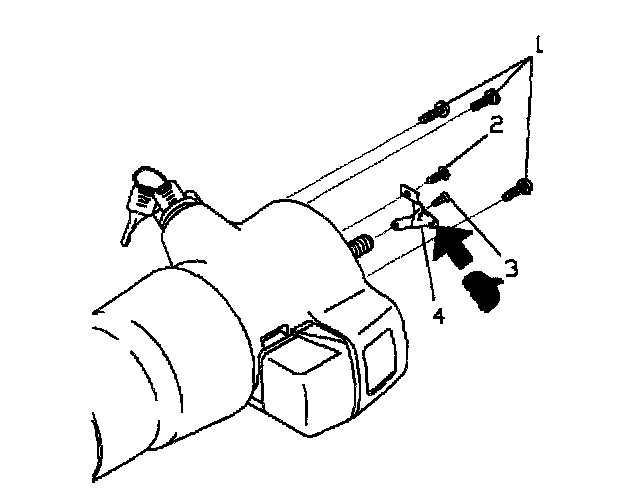

3. Install 3 pan head 6-lobed socket tapping screws (1).
- Tighten the screws to 9 Nm (80 inch lbs.).

4. Lubricate the signal switch arm assembly (4) with synthetic grease.
5. Install the signal switch arm assembly (4).
6. Install the flat head tapping screw (3).
- Tighten the screw to 2 Nm (20 inch lbs.).

7. Install the round washer head screw (2).
- Tighten the screw to 4 Nm (31 inch lbs.).

8. Install the turn signal switch assembly connector to the bulk head connector.
9. Install the upper tilt head components.
10. Install the turn signal switch lever.
11. Screw the tilt lever into the steering column.
12. Install the hazard knob.
