Steering Column Jacket - Disassemble

- Tool Required
- J 21854-1 Pivot Pin Remover

1. Remove the tilt spring assembly.

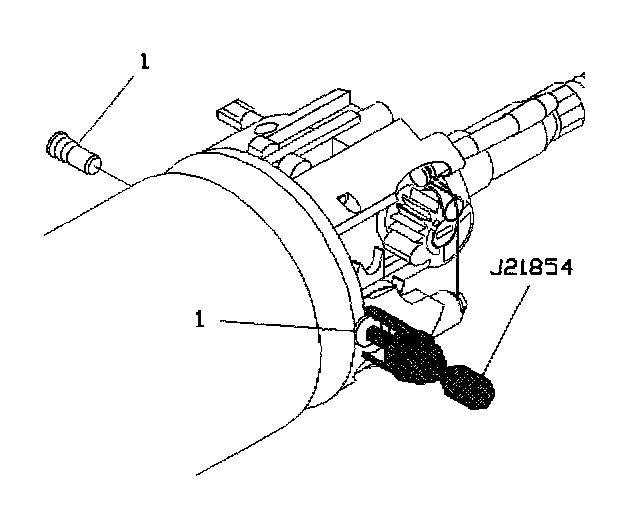

2. Remove 2 pivot pins (1) using tool J 21854-1 if the pivot pins have been staked 3 times discard them.





3. Reinstall the tilt lever (2) Tilt Lever Replacement - On Vehicle.

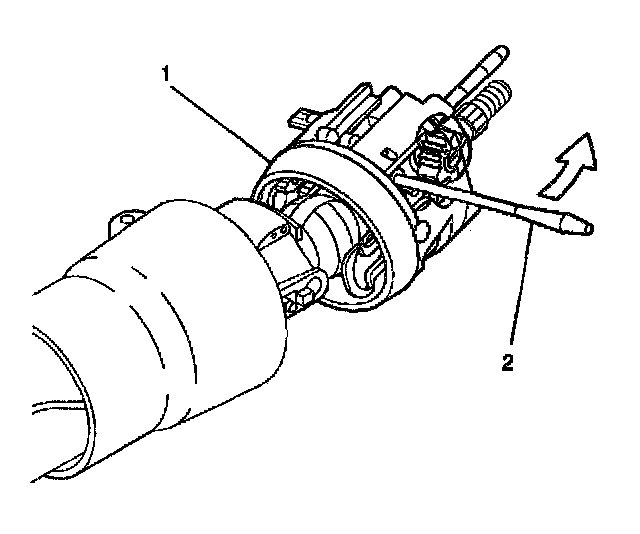

4. Pull back on the tilt lever (2) and pull steering column housing assembly (1) down and away from column.
5. Remove the tilt lever (2) Tilt Lever Replacement - On Vehicle.
