SIR Steering Wheel Module Coil - Disassemble

DISASSEMBLY PROCEDURE

- Tool Required
- J 41352 Modular Column Holding Fixture





1. The turn signal switch assembly must be in the "UP" position.

IMPORTANT: Check the fused jumper assembly for burnt 2 fuses before doing this procedure.

Align the block tooth on the steering shaft assembly to the 12 o'clock position. Turn the key to the "OFF" position and remove the key.

2. Check steering column for accident damage.
3. Install the steering column into J41352.

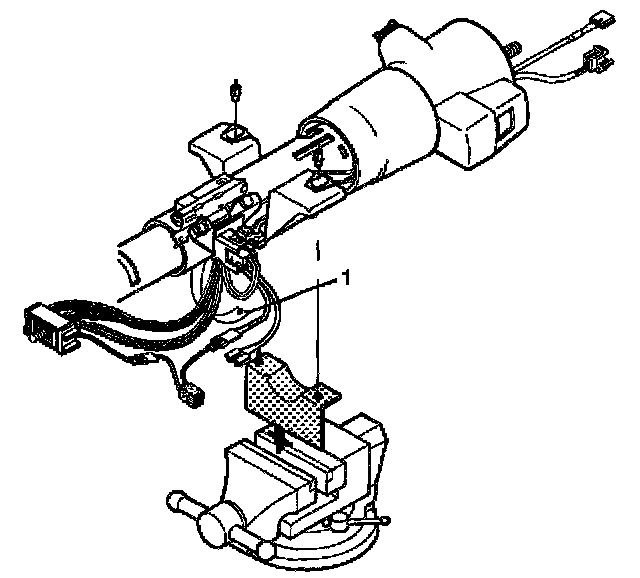

4. Remove the wire harness assembly from the wire harness strap (1).

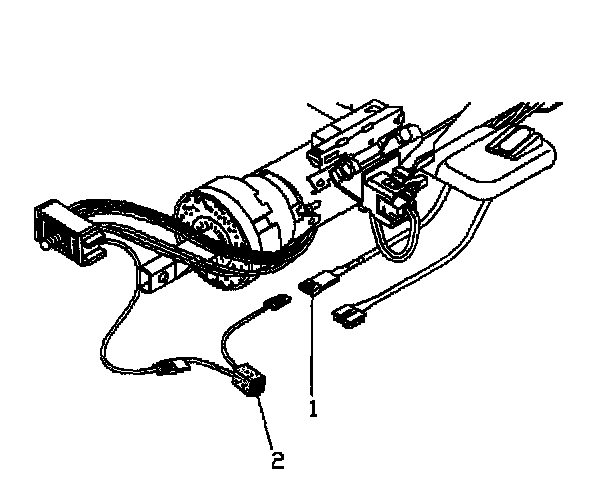

5. Remove the SIR connector (1) from the fused jumper assembly connector (2).





6. Remove the retaining ring.





7. Remove the wire protector.
8. Attach a wire to the SIR coil assembly connector. Attaching a wire to the connector will make installation easier.

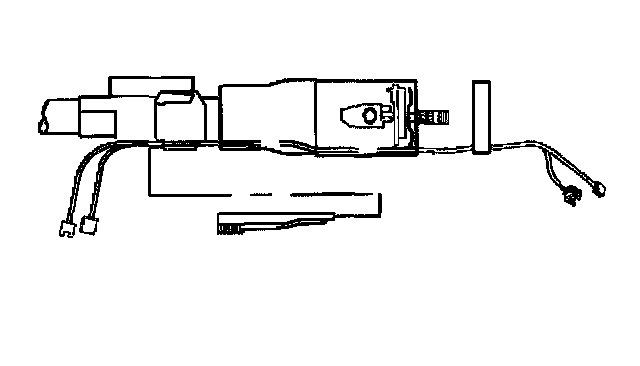

9. Gently pull the SIR coil assembly and connector from the steering column.
