Lock Housing - Disassemble

DISASSEMBLY PROCEDURE
1. Remove the steering column pass key lock cylinder set.

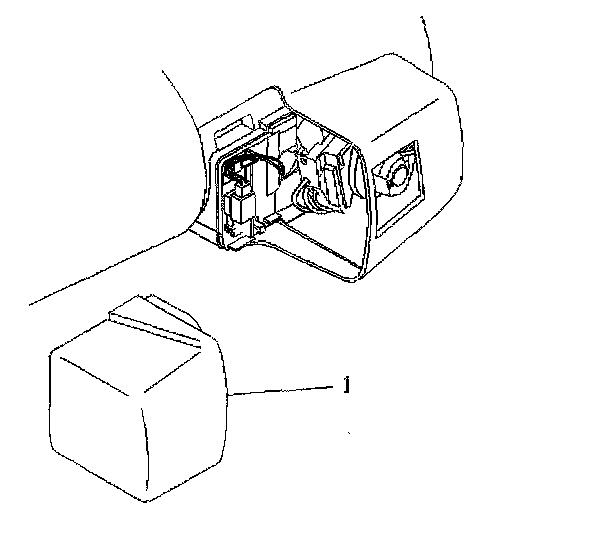

2. Remove the column housing cover end cap (1).

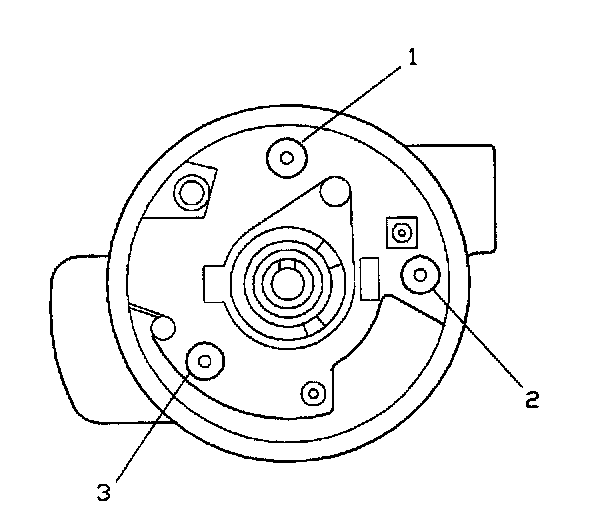

3. Remove the 3 pan head 6-lobed socket tapping screws. (1) at 12 o'clock, (2) at 3 o'clock and (3) at 8 o'clock.





4. Remove the lock housing cover assembly (1).

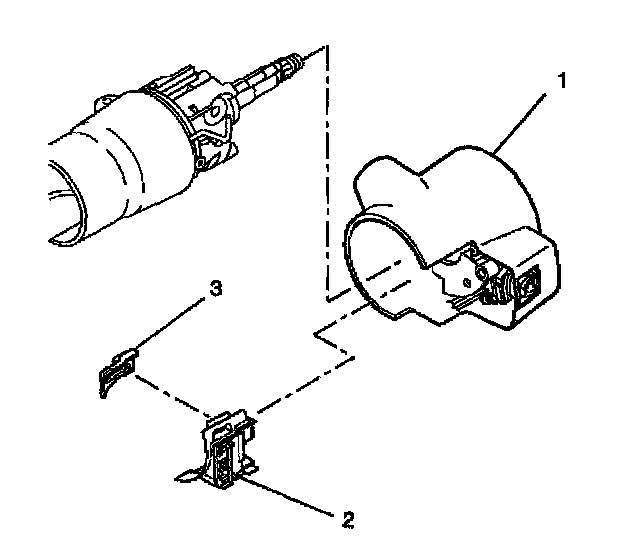

5. Remove the column housing cover end base plate (2) and the dimmer switch rod actuator (3).

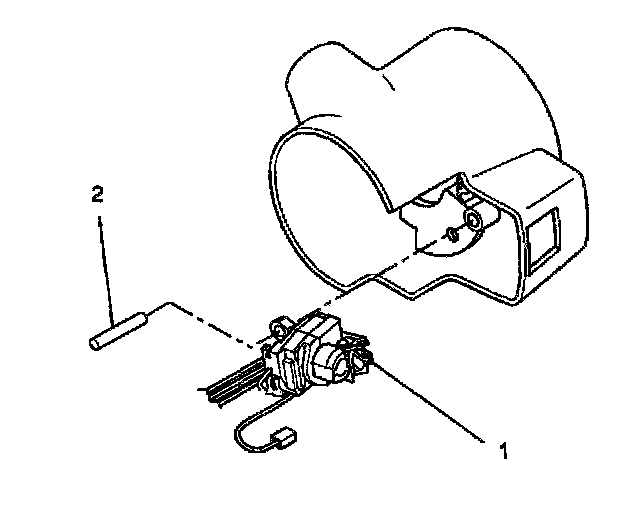

6. Remove the switch actuator pivot pin (2).
7. Remove the pivot and pulse switch assembly (1) from the lock housing cover assembly.
