Ignition Lock Cylinder - Assemble

ASSEMBLY PROCEDURE





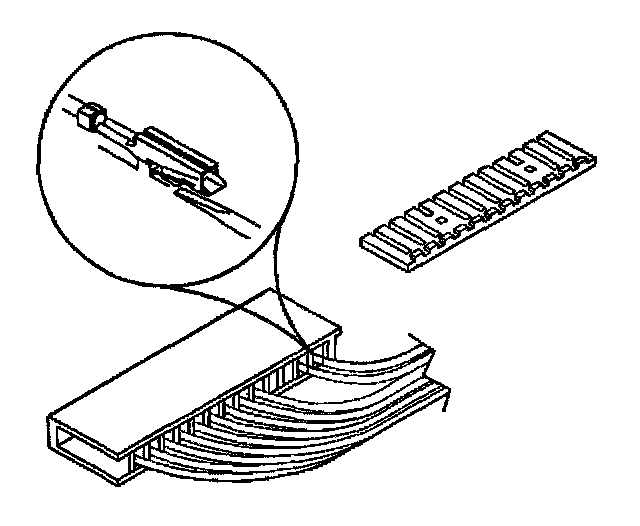

1. Pull the steering column passkey lock cylinder set terminal connectors through the column and reconnect.

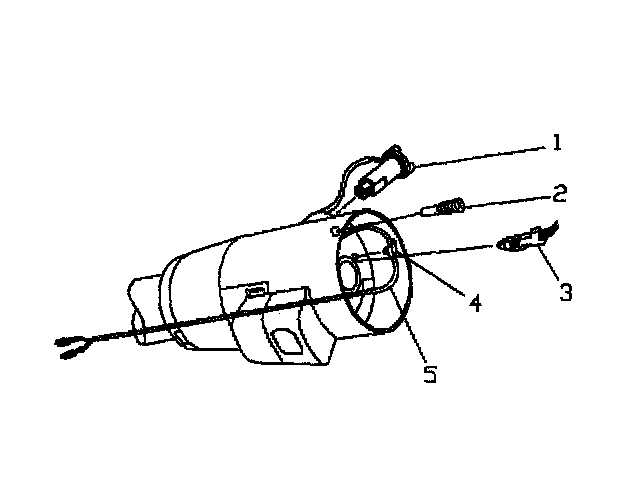

2. Put the steering column passkey lock cylinder set (1) into the lock housing cover assembly.

NOTICE: Refer to Fastener Notice in Service Precautions.

3. Install the lock retaining screw (2).
- Tighten the screw to 2.5 Nm (22 inch lbs.).

4. Install the buzzer switch assembly (3).
5. Install the retaining clip (4) onto the steering column passkey lock cylinder set terminal lead and the lock housing cover assembly.
6. Install the turn signal switch assembly.
