Dimmer Switch - Assemble

ASSEMBLY PROCEDURE
- The column must be in the 12 o'clock position.

IMPORTANT: To align the steering shaft assembly to the 12 o'clock position. Turn the key to the off/lock position. Pull the key out and turn the steering shaft until you hear a click.

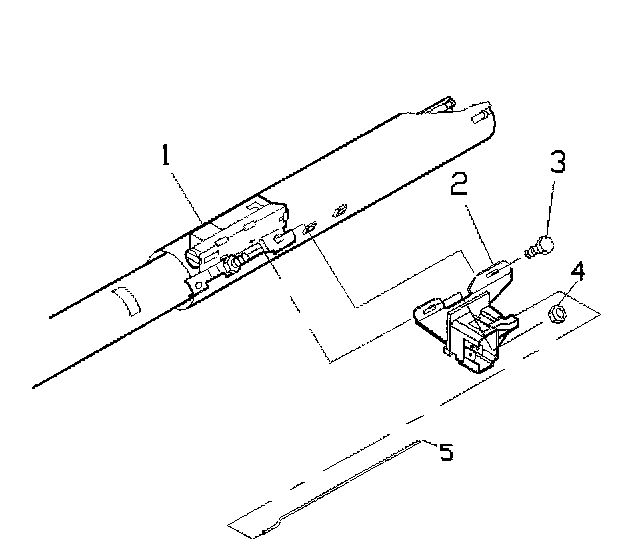

- Install the dimmer switch assembly (2) onto the ignition switch assembly (1).
- Install the Torx(R) washer head screw (3).
- Tighten the screw to 4 Nm (35 inch lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

- Install the dimmer switch rod (5).
- Install the hexagon nut (4).
- Tighten the screw to 4 Nm (35 inch lbs.).

- Reconnect the dimmer switch connector onto the dimmer switch assembly (2).

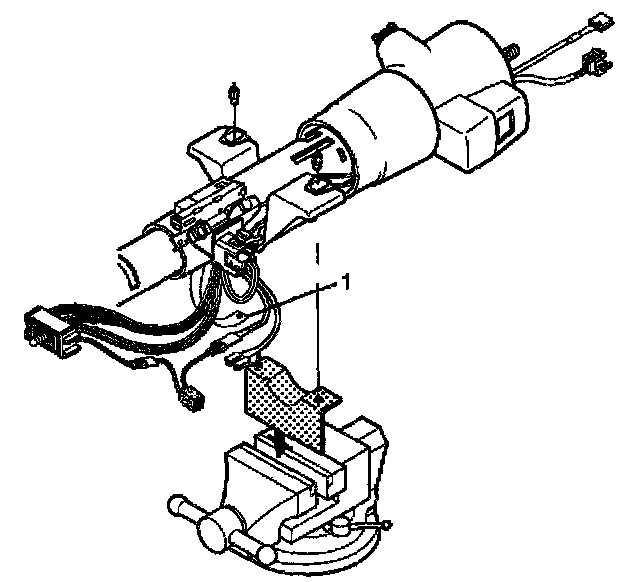

- Put the wire harness assembly into the wire harness strap (1).

IMPORTANT: Turn the key to the on position to unlock the steering shaft.

- Remove the column from the J 41352.
