Ignition Switch - Assemble

ASSEMBLY PROCEDURE

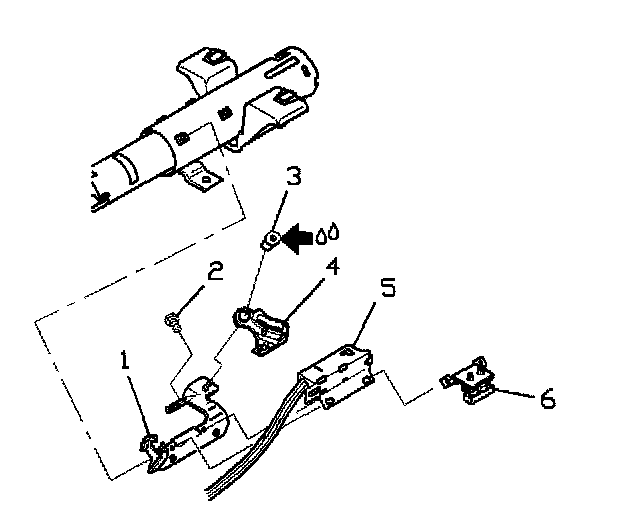

- Install the stud and bracket assembly (1).
- Install the Torx(R) washer head screw (2)
- Tighten the stud to 4 Nm (35 inch lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

- Install the cable shift cam assembly (4).
- Lubricate with synthetic grease. Install the cam retainer (3).
- Install the ignition switch assembly (5).
- Install the PRNDL adjuster assembly (6).
- Install the electrical BTSI actuator assembly.
- Install the dimmer switch assembly.
