Enabling the SIR System

1. Remove the key from the ignition switch.

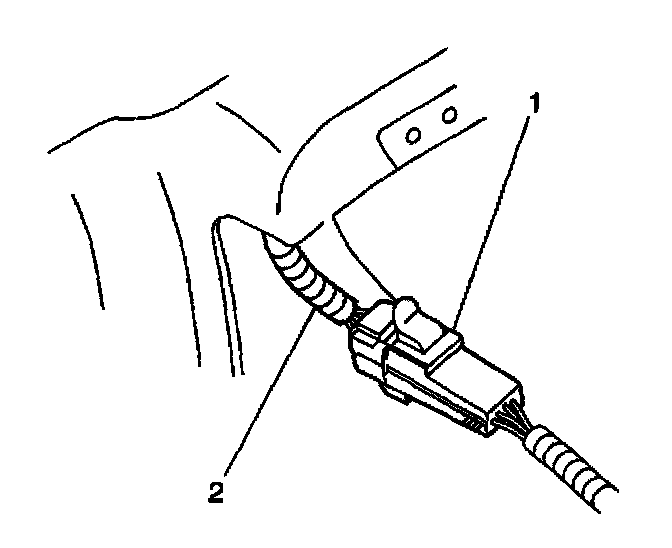

2. Connect the Inflatable Restraint Instrument Panel (IP) module yellow 2-way connector (2).
3. Attach the Inflatable Restraint IP module yellow 2-way connector (1) to the IP sheetmetal.
4. Ensure the pigtail and harness wiring is routed away from the HVAC mix door actuator.

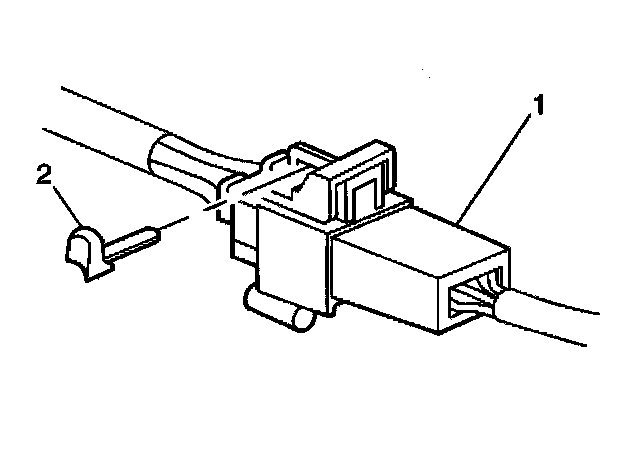

5. Install the Connector Position Assurance (CPA) (2) to the Inflatable Restraint IP module yellow 2-way connector (1).
6. Attach the Inflatable Restraint IP module yellow 2-way connector (1) to the IP sheetmetal.





7. Install the IP compartment.

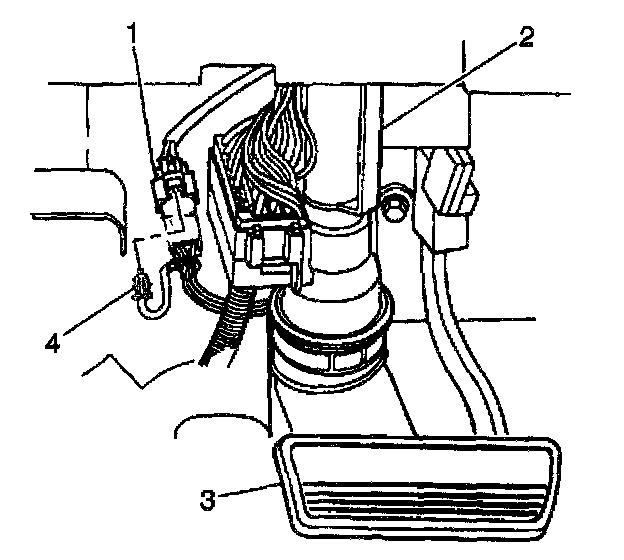

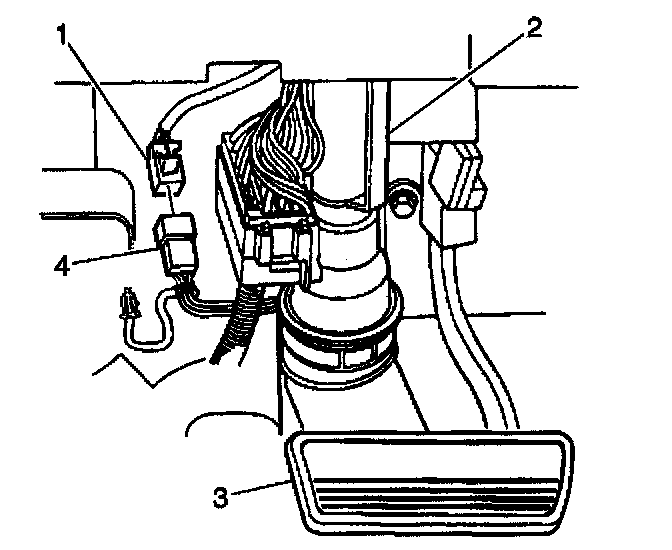

8. Connect the Inflatable Restraint steering wheel yellow 2-way connector (4) located near the base of the steering column (2).





9. Install the Connector Position Assurance (CPA) (4) to the Inflatable Restraint steering wheel yellow 2-way connector (1) located near the base of the steering column (2).
10. Install the left side sound insulator.

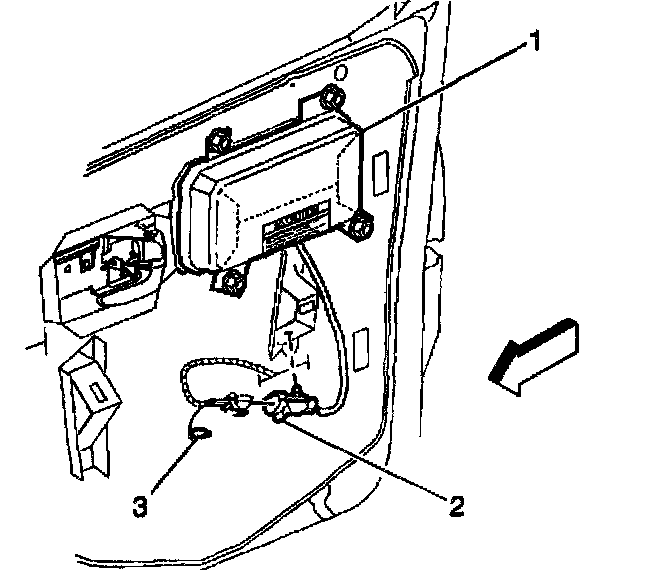

11. Enable the side air bags (1) if disabled. Refer to the following procedures to enable the side air bags.
11.1. Connect the Inflatable Restraint side air bag inflator module yellow 2-way connector (2).
11.2. Install the Connector Position Assurance (CPA) (3) to the Inflatable Restraint side air bag module yellow 2-way connector (2).
11.3. Install the door trim panel.
12. Install the SIR fuse to the trunk compartment fuse block.
13. Staying well away from both air bags, turn the ignition switch to the RUN position.
^ The AIR BAG warning lamp will flash 7 times.
^ The AIR BAG warning lamp will then turn OFF.
14. Perform the SIR Diagnostic System Check it the AIR BAG warning lamp does not operate as described.
