Power Steering Bleeding: Service and Repair

- Tool Required
- J 35555 Mity Vac
- J 43485 Power Steering Bleeder Adapter





IMPORTANT: Use clean, new power steering fluid type only.

- See the Maintenance and Lubrication subsection for fluid specifications.

NOTICE: If the power steering system has been serviced, an accurate fluid level reading cannot be obtained unless air is bled from the steering system. The air in the fluid may cause pump cavitation noise and may cause pump damage over a period of time.

NOTICE: When adding fluid or making a complete fluid change, always use the proper power steering fluid. Failure to use the proper fluid will cause hose and seal damage and fluid leaks.

IMPORTANT: Hoses touching the frame, body, or engine may cause system noise.

- Verify that the hoses do not touch any other part of the vehicle.

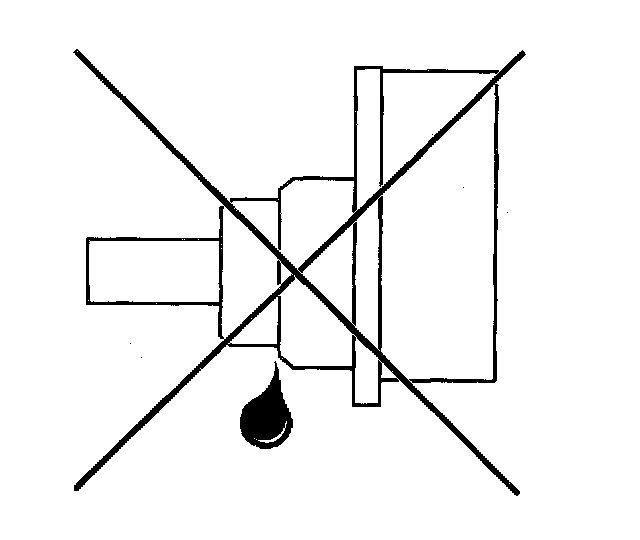

IMPORTANT: Loose connections may not leak, but could allow air into the steering system.

- Verify that all hose connections are tight.

IMPORTANT: Maintain the fluid level throughout the bleed procedure.





1. Remove the pump reservoir cap.
2. Fill the pump reservoir with fluid to the "FULL COLD" level.

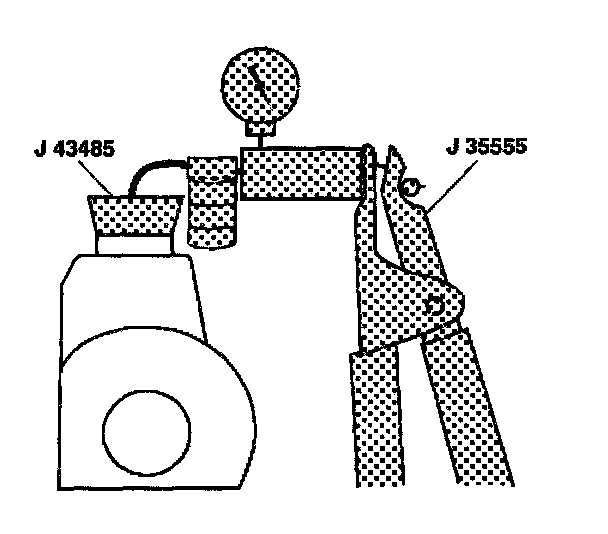

3. Attach J 43485 to J 35555 or equivalent.

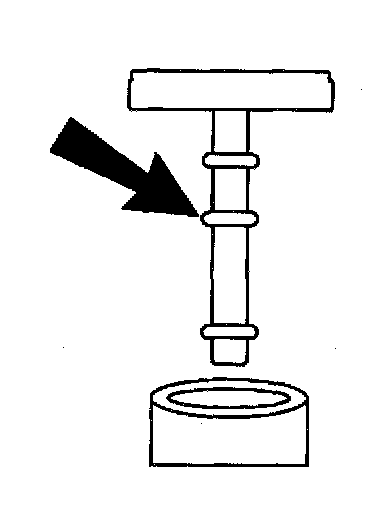

4. Place J 43485 on or in the pump reservoir filler neck.
5. Apply a vacuum of 68 kPa (20 inch Hg) maximum.
6. Wait 5 minutes.

Typical vacuum drop is 7 - 10 kPa (2 - 3 inch Hg). If the vacuum does not remain steady, refer to Excessive Vacuum Drop Diagnosis at the end of this procedure.





7. Remove the J 43485 and the J 35555.
8. Reinstall the pump reservoir cap.

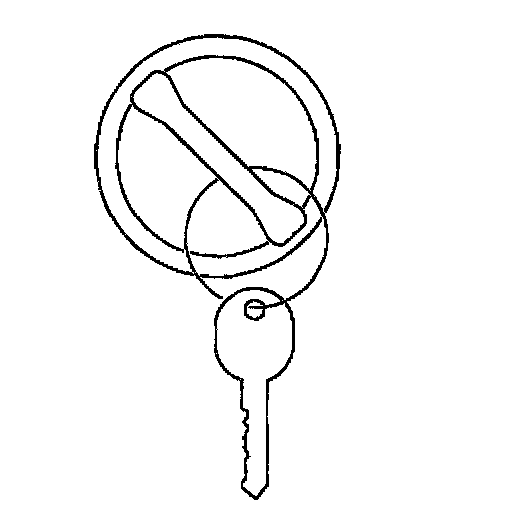

9. Start the engine. Allow the engine to idle.

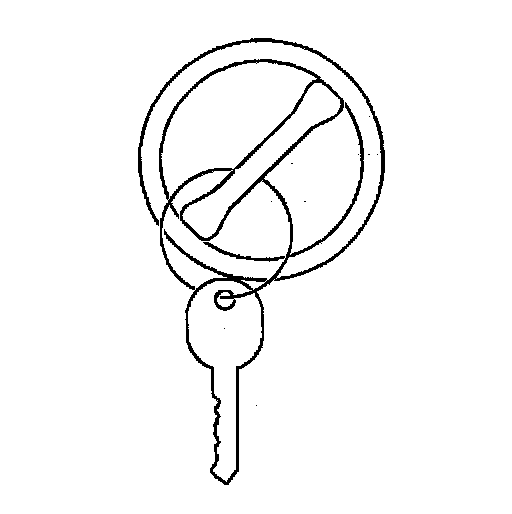

10. Turn off the engine.
11. Verify the fluid level. Repeat steps 9 through 11 until fluid stabilizes.

IMPORTANT: Do not turn steering wheel to lock.

12. Start the engine. Allow the engine to idle.

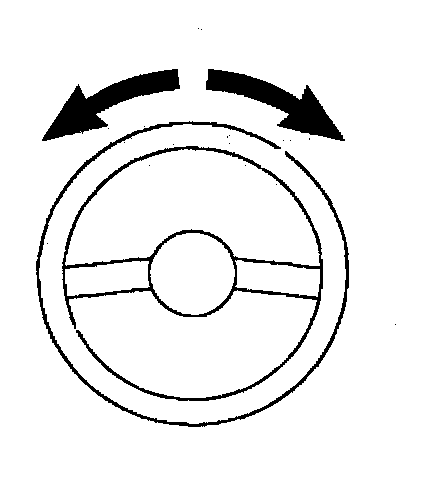

13. Turn the steering wheel 180 - 360 degrees in both directions 5 times.





14. Switch the ignition off.
15. Verify the fluid level.

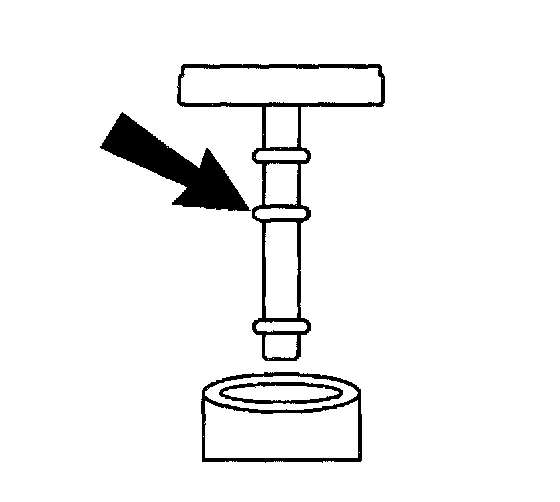

16. Remove the pump reservoir cap.

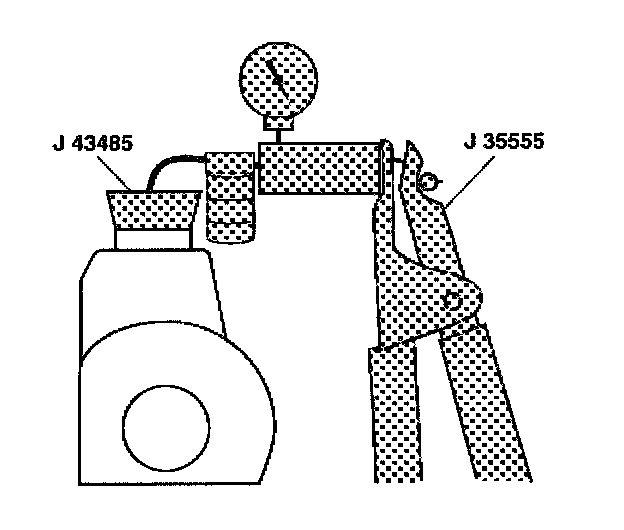

17. Attach J 43485 to J 35555 or equivalent.
18. Place J 43485 on or in the pump reservoir filler neck.
19. Apply a vacuum of 68 kPa (20 inch Hg) maximum.
20. Wait 5 minutes.
21. Remove the J 43485 and the J 35555.
22. Verify the fluid level.

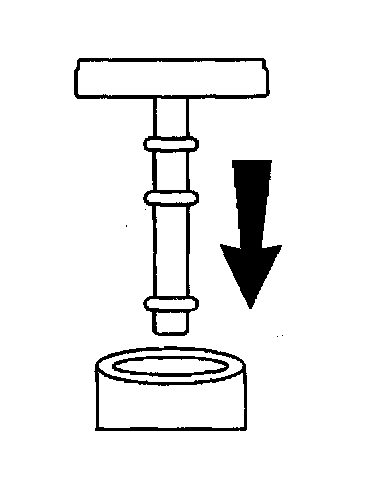

23. Reinstall the pump reservoir cap.
