Automatic Level Control (ALC) Fuse Block
Automatic Level Control (ALC) Fuse Block
Power Distribution Schematics: BODY 2 FUSE:

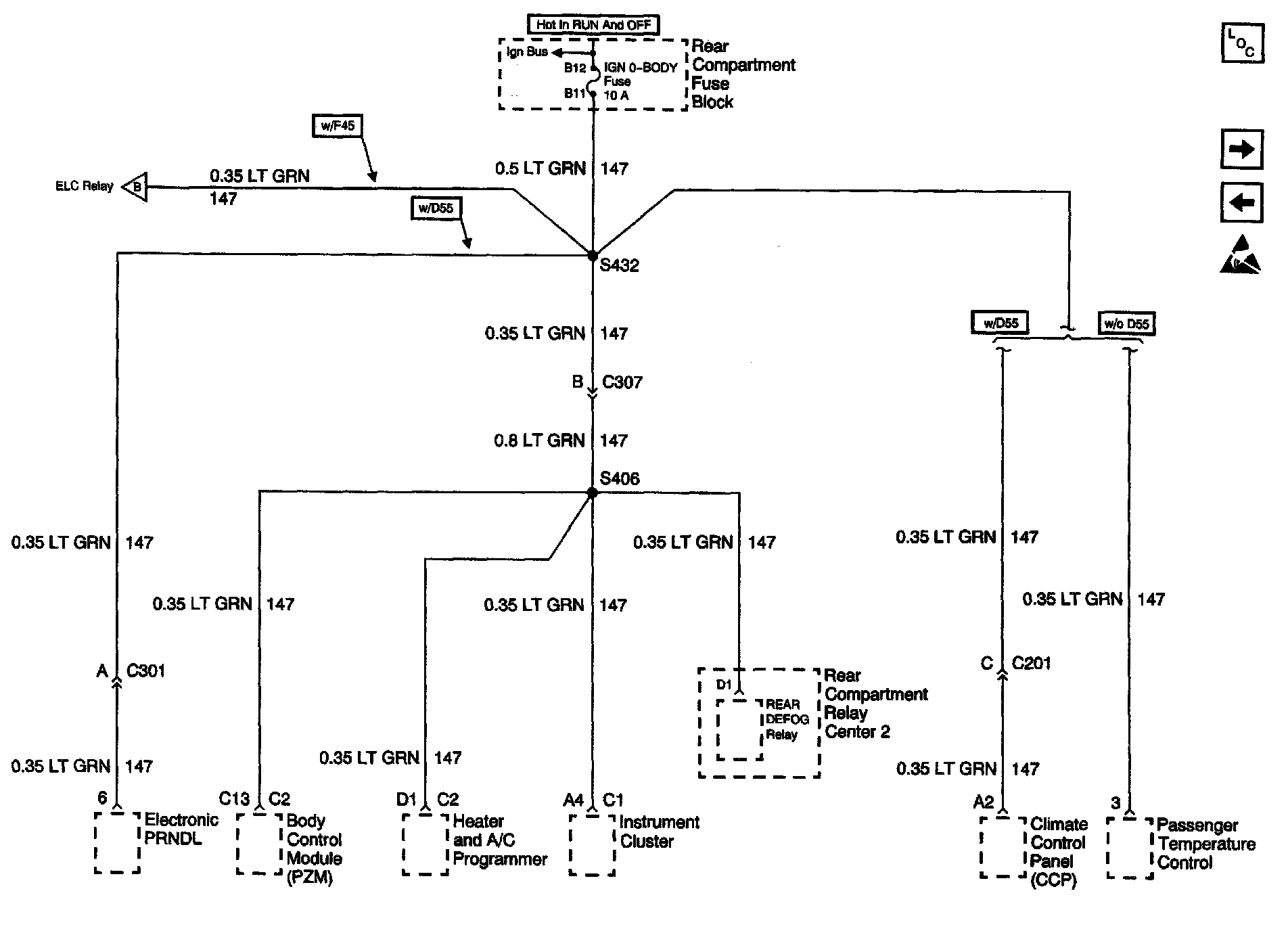

Power Distribution Schematics: IGN 0 BODY Fuse (DeVille):
