Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution Diagrams >> Navigational Aids >> Ground Schematics >> E >> From

From

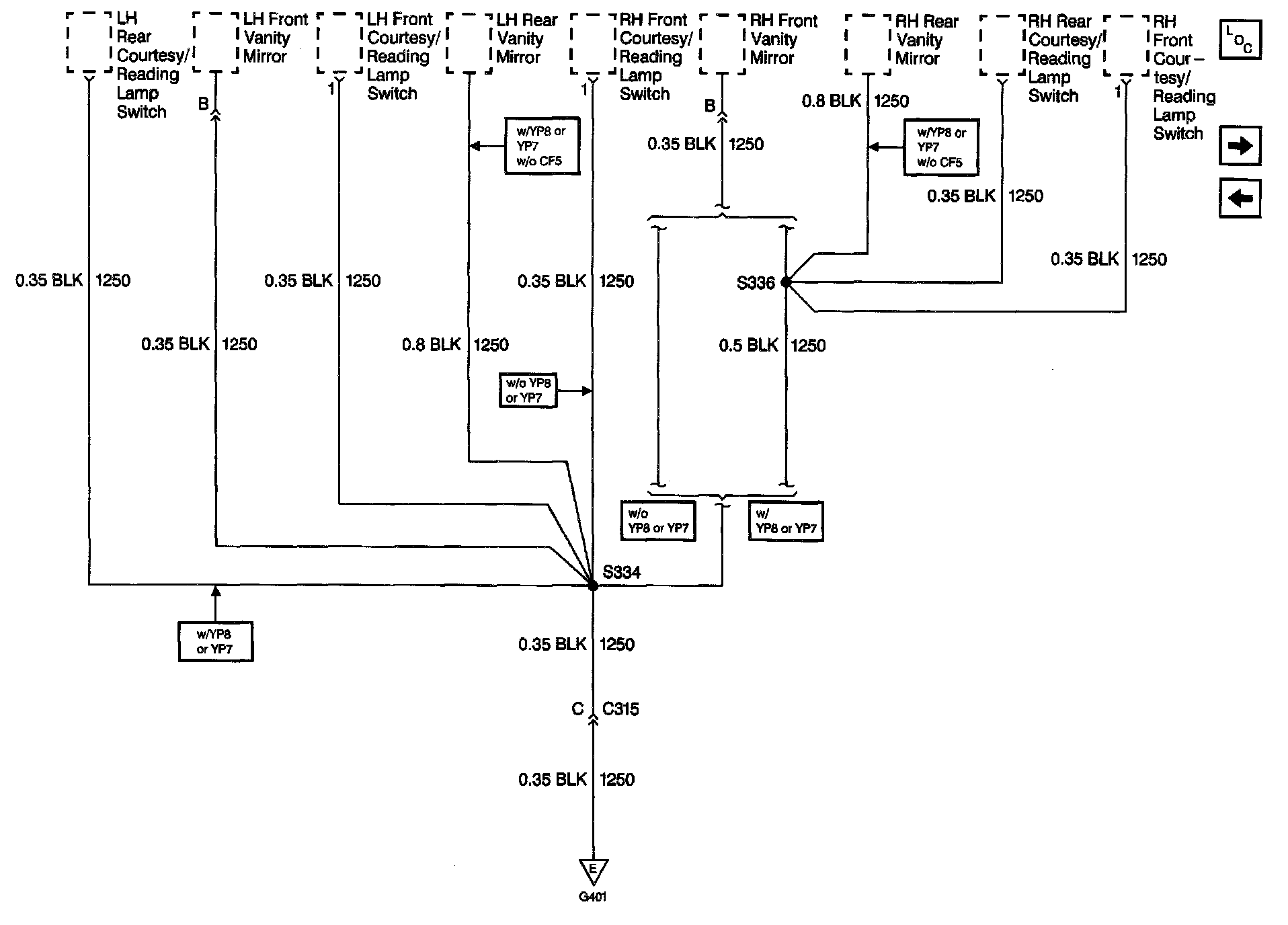

Ground Distribution Schematics: G401 (DeVille) (Part 2 Of 2):
