Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Windows and Glass >> Power Window Switch >> Diagrams >> Connector Views >> LH >> Window Switch C2 (Deville), LH Front

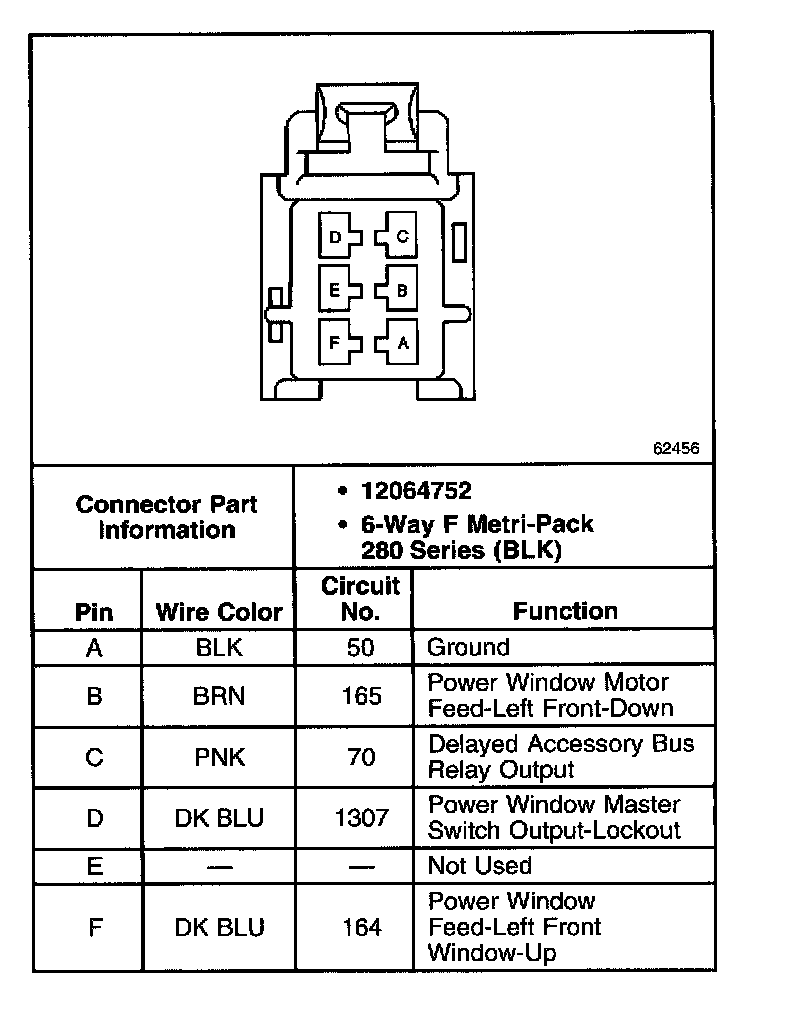

Window Switch C2 (Deville), LH Front

LH Front Window Switch C2 (DeVille):
