Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Powertrain Management >> Sensors and Switches - Computers and Control Systems >> Power Steering Pressure Switch >> Locations

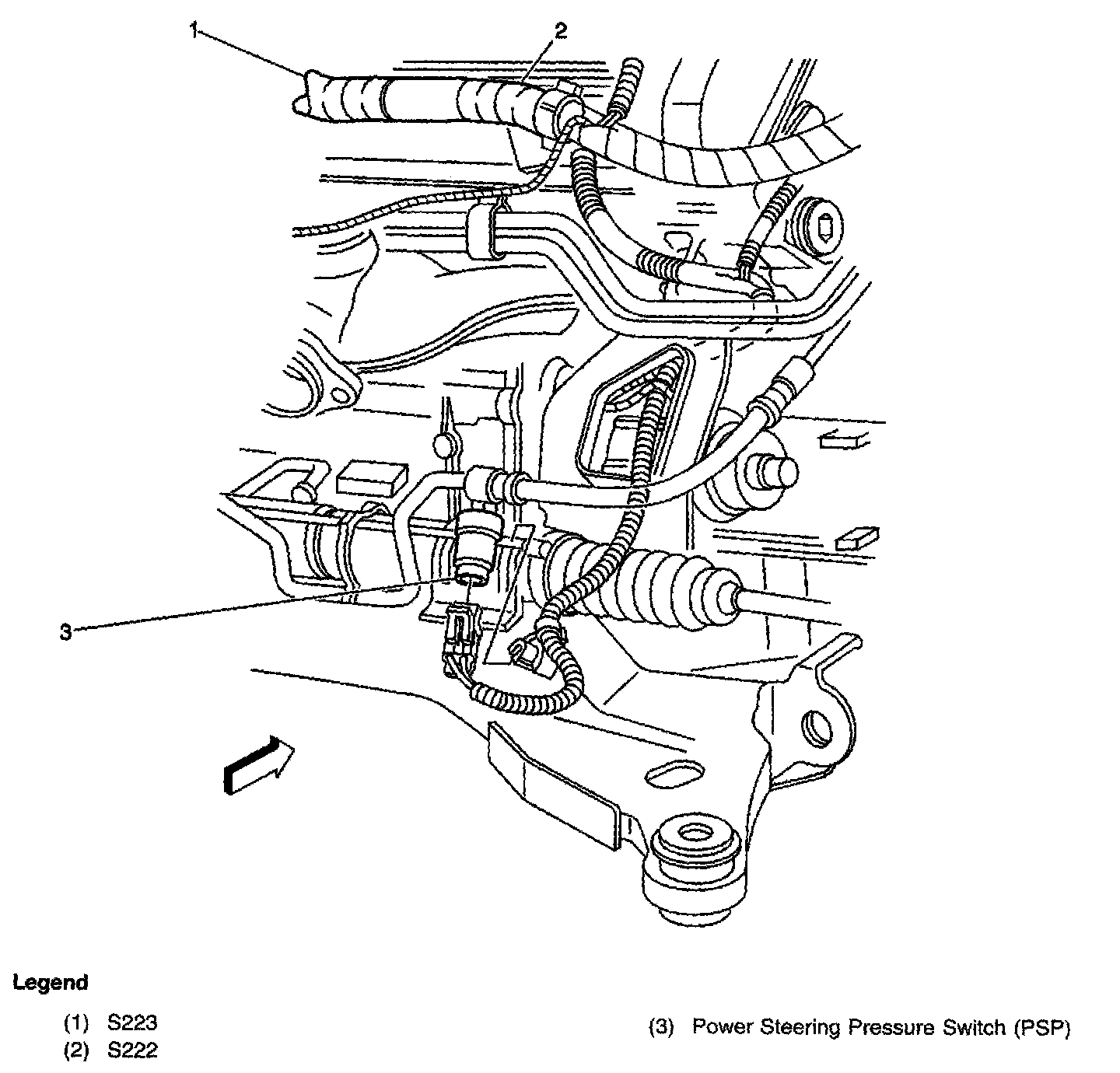

Power Steering Pressure Switch: Locations

Engine, Right Rear:





On the center rear of the engine compartment, on the high pressure power steering line
