Hazard Warning Switch: Service and Repair

REMOVAL PROCEDURE

CAUTION: Refer to SIR Service Precautions Caution in Service Precautions.

1. Disable the SIR.

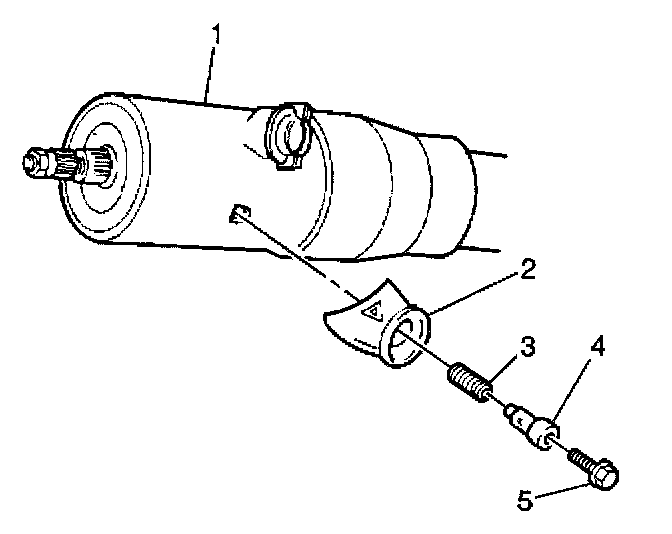

2. Remove the following components from the steering column (1):
^ The screw (5)
^ The button (4)
^ The spring (3)
^ The knob (2)

INSTALLATION PROCEDURE





1. Install the following components to the steering column (1):
^ The screw (5)
^ The button (4)
^ The spring (3)
^ The knob (2)

2. Enable the SIR system.
