Lateral Accelerometer: Service and Repair

ACCELEROMETER REPLACEMENT

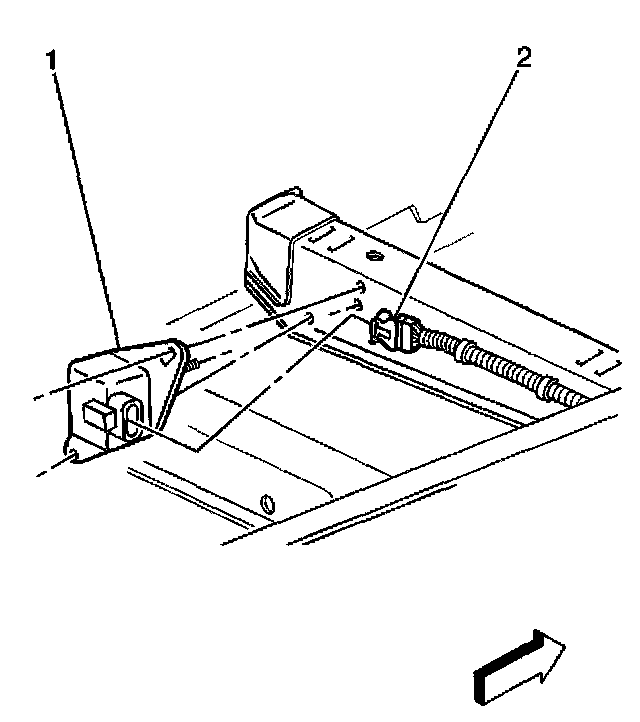

Removal Procedure





1. Turn OFF the ignition.
2. Remove the right front seat. Refer to Seat Replacement (DeVille) in Seats.
3. Lift up the carpet and insulation to access the lateral accelerometer (1). Refer to Carpet Retainer Replacement (DeVille) or Carpet Retainer Replacement (Eldorado) in Interior Trim.
4. Remove the 2 lateral accelerometer mounting nuts.
5. Disconnect the lateral accelerometer electrical connector (2).
6. Remove the lateral accelerometer (1) from the mounting studs.

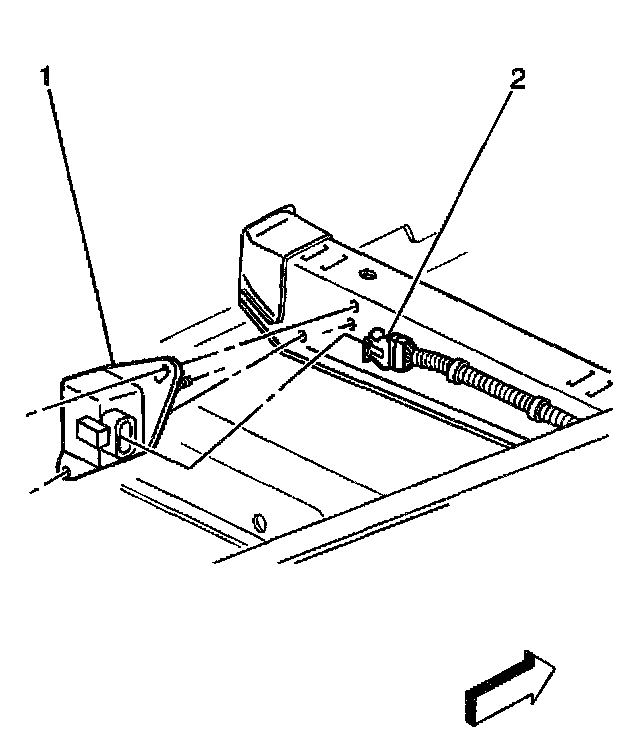

Installation Procedure





1. Install the lateral accelerometer (1) onto the mounting studs.

NOTICE: Refer to Fastener Notice in Service Precautions.

2. Install the 2 lateral accelerometer nuts

Tighten the 2 lateral accelerometer nuts to 2.4 Nm (1.8 ft. lbs.).

3. Install the lateral accelerometer electrical connector (2).
4. Install the carpet and insulation. Refer to Carpet Retainer Replacement (DeVille) or Carpet Retainer Replacement (Eldorado) in Interior Trim.
5. Install the right front seat. Refer to Seat Replacement (DeVille) in Seats.
6. Perform the ABS Diagnostic System Check. Refer to A Diagnostic System Check - ABS.
