Brake Fluid Level Sensor/Switch: Service and Repair

REMOVAL PROCEDURE

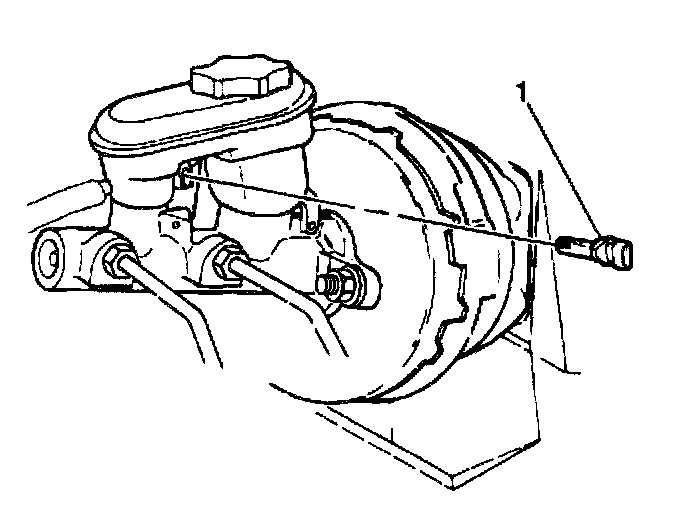

1. Remove the electrical connector from the fluid level sensor switch (1).

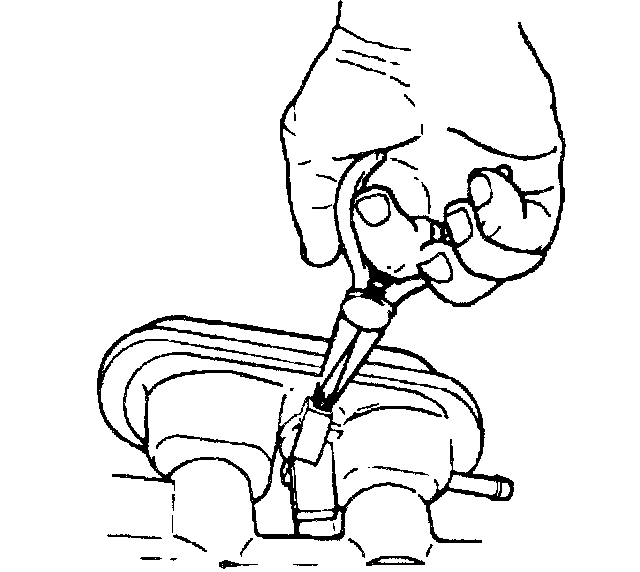

2. Disconnect the fluid level sensor switch. Use needle nose pliers to compress switch locking tabs at inboard side of master cylinder.

INSTALLATION PROCEDURE

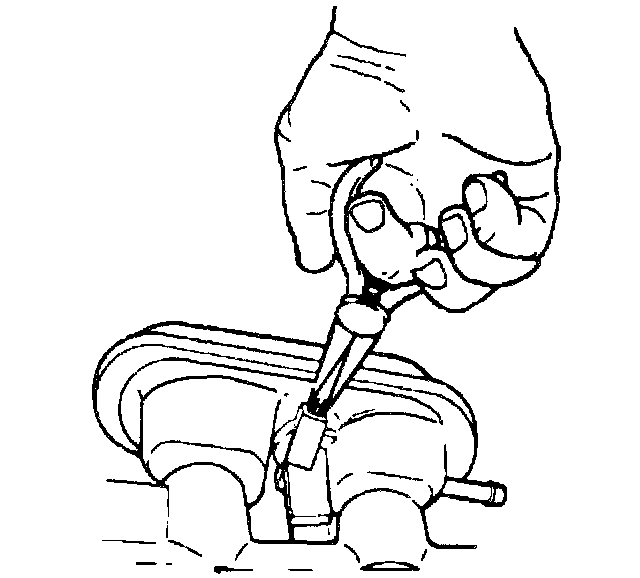

1. Connect the fluid level sensor switch until the locking tabs snap into place.

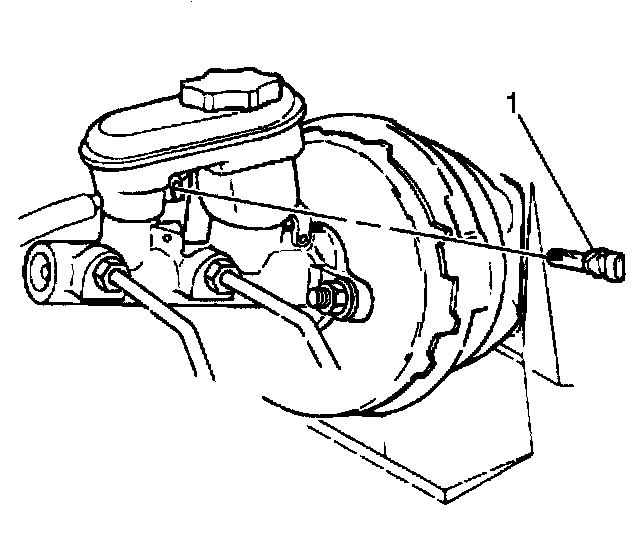

2. Connect the electrical connector to the fluid level sensor switch (1).
