Sunroof / Moonroof Switch: Service and Repair

REMOVAL PROCEDURE

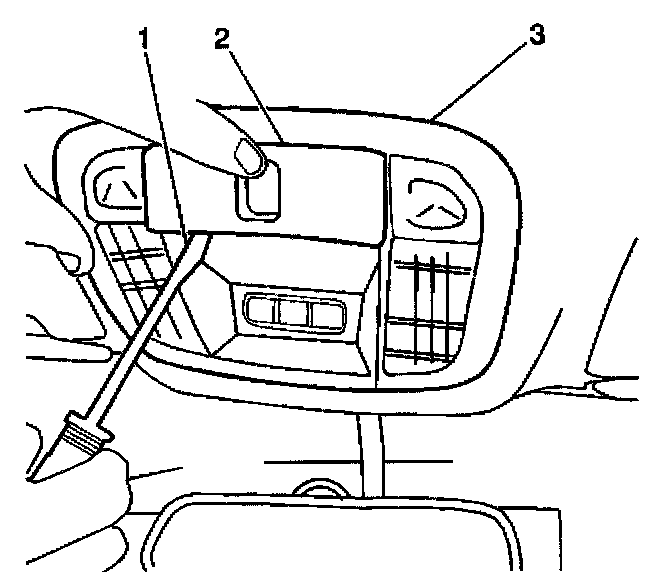

1. Use a flat bladed tool (1) in order to release the trim cover (2).
2. Pull downward on the front of the overhead console (3) in order to release the clips that retain the overhead console to the roof.
3. Disconnect the electrical connectors.
4. Remove overhead console (3).

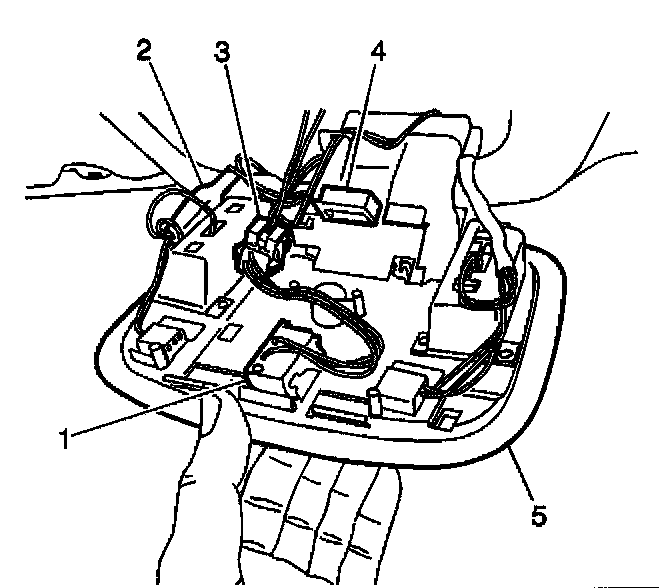

5. Gently pry the locking tabs that retain the sunroof switch to the overhead console (5).
6. Remove the sunroof switch (1).

INSTALLATION PROCEDURE



1. Install the sunroof switch (1).
2. Gently push the sunroof switch into place.
3. Insert the rear of the overhead console into place and connect the electrical connectors.




4. Push the overhead console up in order to engage fasteners.
5. Install the trim cover (2) to secure the overhead console (3) into place.
