Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Power Door Lock Switch >> Diagrams >> Door Lock Switch (Deville), LH Rear

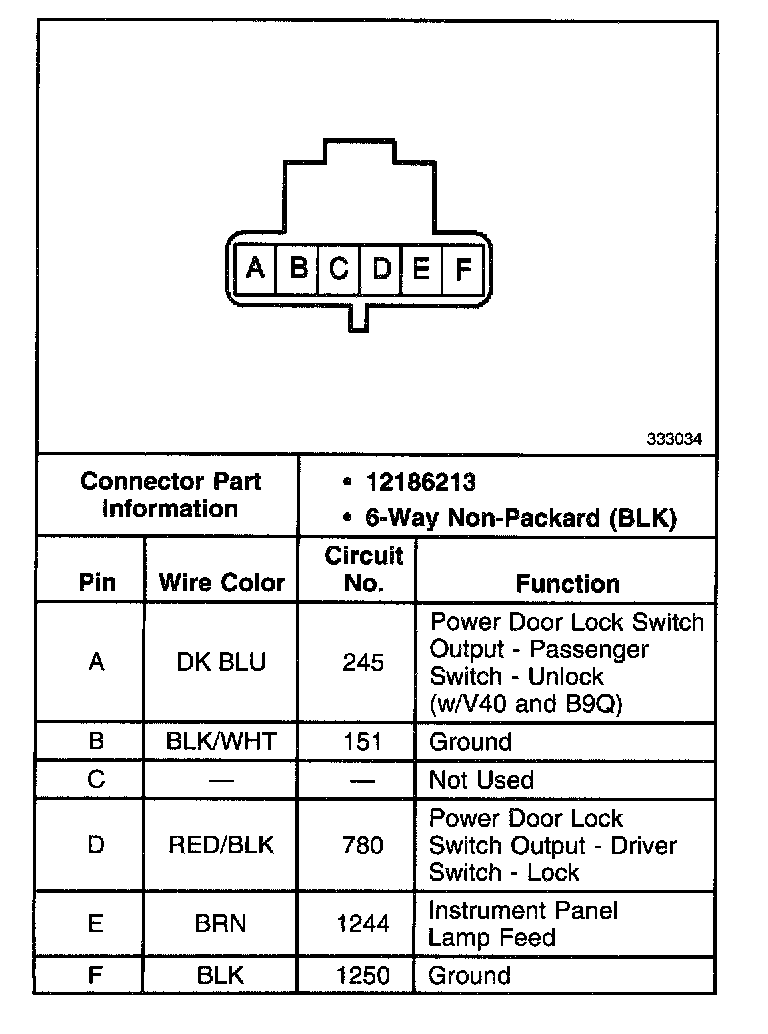

Door Lock Switch (Deville), LH Rear

LH Rear Door Lock Switch (DeVille):
