Installation Procedure

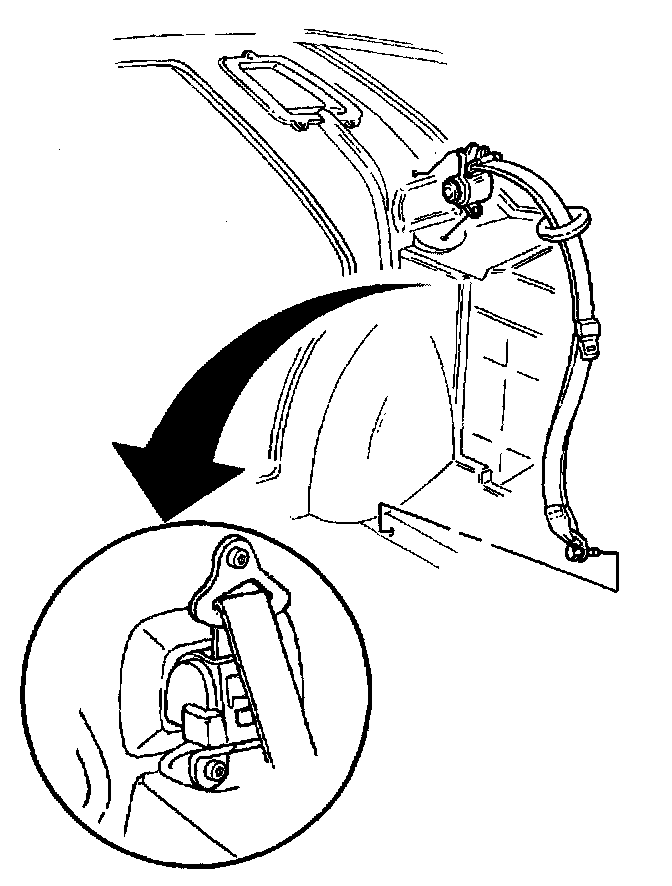

1. Install the belt assembly to the vehicle.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the retractor anchor bolts.

Tighten
Tighten the bolts to 41 N.m (30 lb ft).

3. Install the guide loop bolt.

Tighten
Tighten the bolt to 41 N.m (30 lb ft).

4. Install the quarter trim panel.
