Installation Procedure

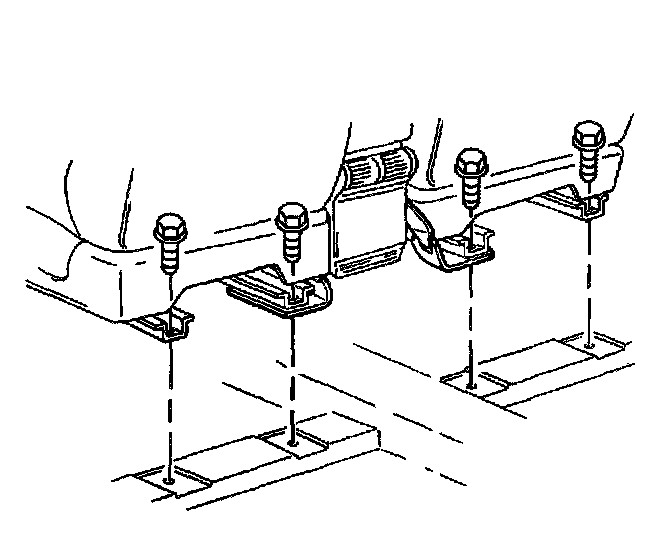

1. Lower the seat assembly.
2. Connect the electrical connectors.
3. Align the rear seat track holes.
4. Slip the belt attachment bracket under the track and align with the anchor bolt hole.

Notice: Refer to Fastener Notice in Cautions and Notices.

5. Install the bolts.

Tighten
Tighten the bolts to 41 N.m (30 lb ft).

6. Connect the rear air duct.
