Removal Procedure

1. Remove the carpet retainers.
2. Remove the body lock pillar trim.
3. Remove the intermediate guide bracket by removing the 3 bolts.





4. Remove the bolt securing the floor retractor to the rocker inner panel.

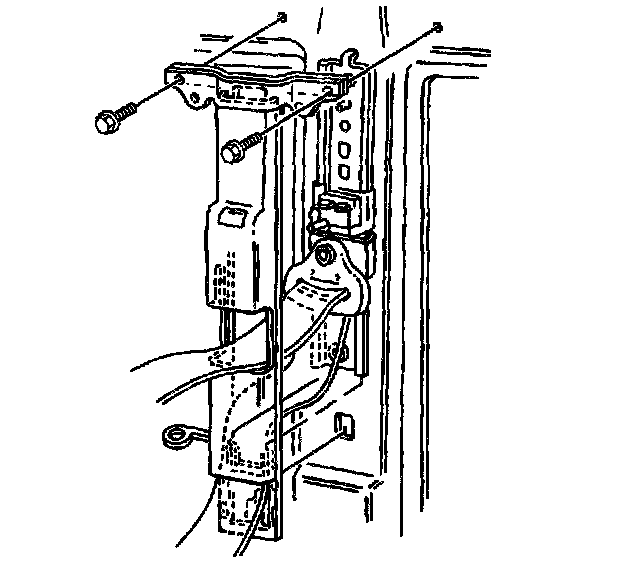

5. Remove the height adjuster trim cover by removing the two bolts under the headliner.
6. Remove the bolts and the height adjuster guide loop.
