Installation Procedure

Notice: Refer to Fastener Notice in Cautions and Notices.

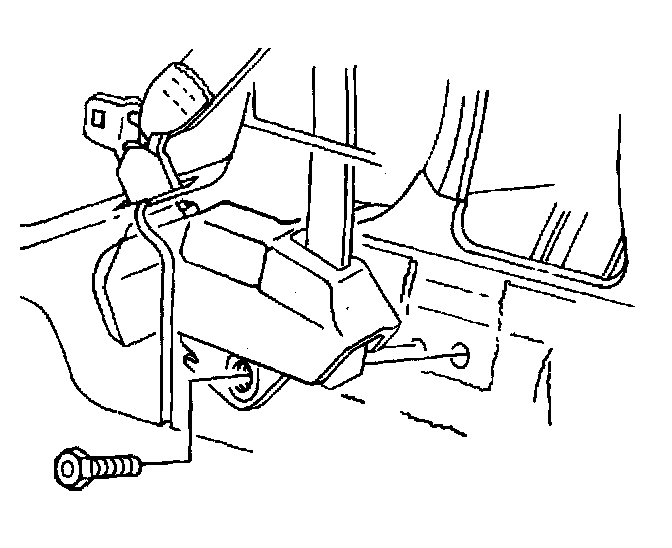

1. Install the floor retractor to the inner rocker panel with a bolt.

Tighten
Tighten the bolt to 41 N.m (30 lb ft).

2. Install the height adjuster guide loop and bolts.

Tighten
Tighten the bolt to 41 N.m (30 lb ft).

3. Install the height adjuster trim cover and bolts.

Tighten
Tighten the bolt to 2 N.m (18 lb in).

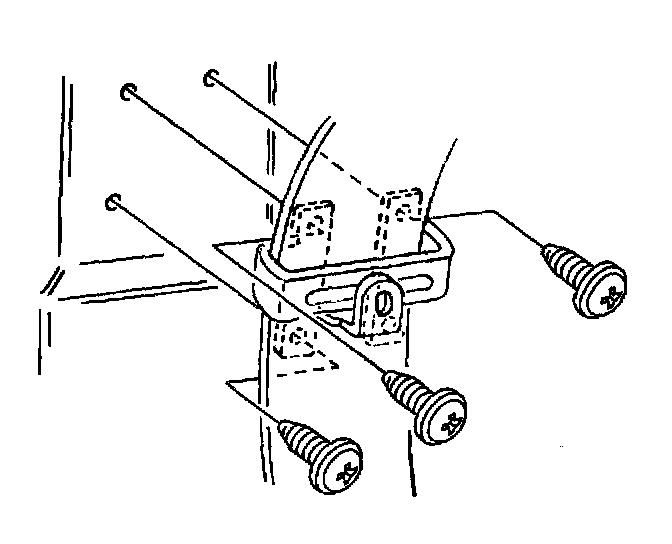

4. Install the intermediate guide bracket with the 3 bolts.

Tighten
Tighten the bolts to 6 N.m (53 lb in).

5. Install the body lock pillar trim.
6. Install the carpet retainers.
