Knee Bolster Reinforcement Replacement

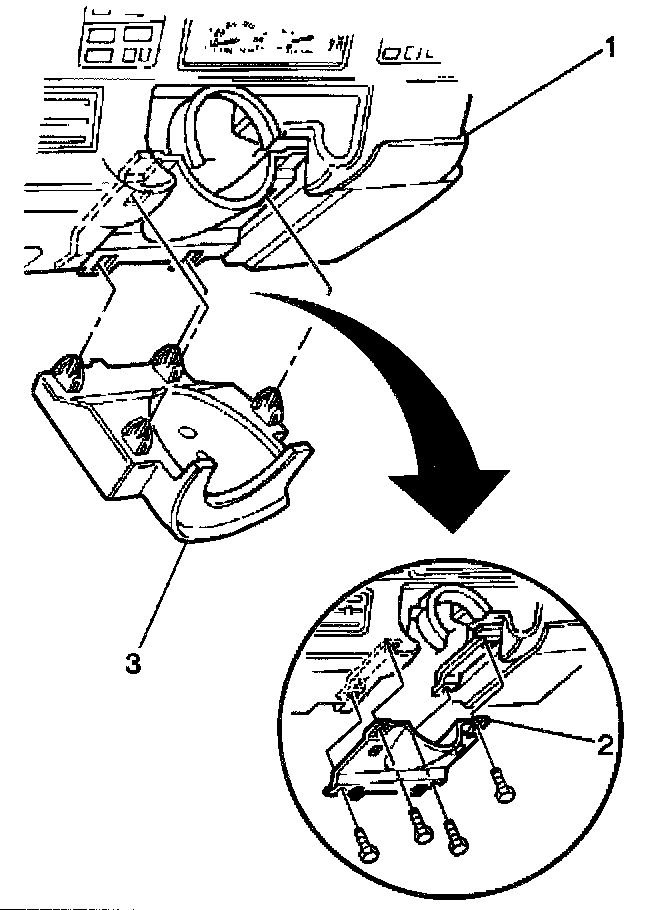

REMOVAL PROCEDURE

IMPORTANT: Replace the steering column opening filler bracket if any damage exists. Do not repair the steering column opening filler bracket.

1. Remove the filler trim.
2. Remove the 4 fasteners from the steering column opening filler bracket (2).
3. Remove the steering column opening filler bracket (2) from the vehicle.

INSTALLATION PROCEDURE
1. Install the steering column opening filler bracket (2) to the vehicle.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the 4 fasteners in order to secure the steering column opening filler bracket.

Tighten
Tighten the fasteners to 2 N.m (18 lb in).

3. Install the filler trim.
