Installation Procedure

1. To install the Inflatable Restraint Steering Wheel Module Coil:
^ Make sure that the wheels are straight ahead.

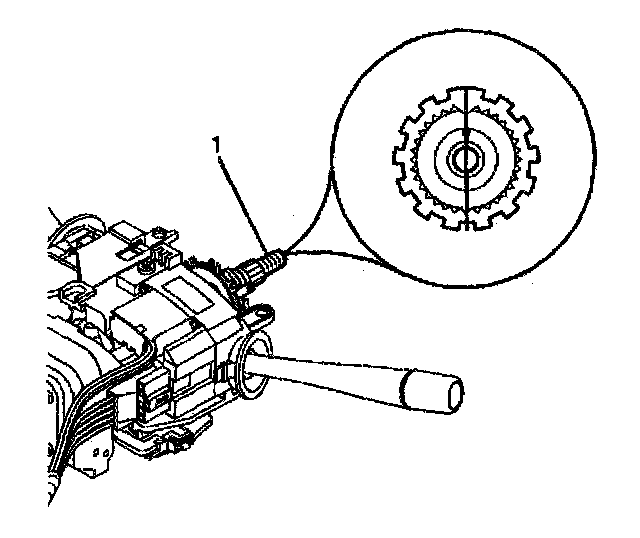

^ Align the block tooth and the centering mark on the race and upper shaft assembly (1) at the 12 o'clock position.





2. The new SIR coil assembly will come pre-centered.
3. If installing the existing SIR coil assembly, proceed to the next step.

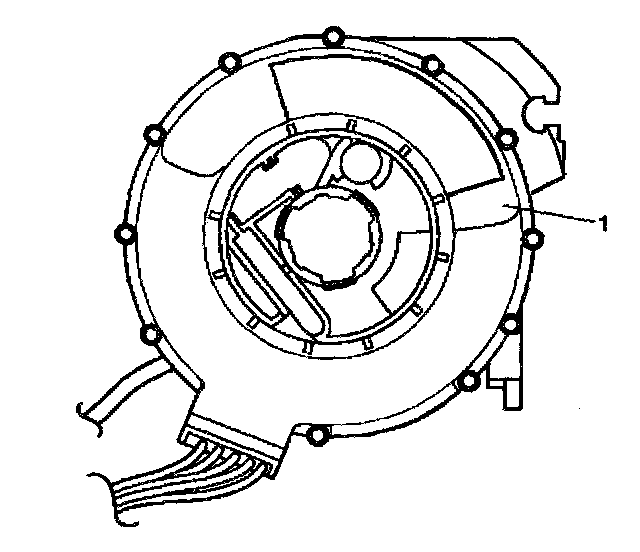

4. Follow the instructions on the notice (1) of the SIR coil assembly.





Important: The column must be in the 12 o'clock position.

5. Align the steering column to the 12 o'clock position.
6. Install the hanging SIR coil assembly onto the race and upper shaft assembly.
7. The new SIR coil assembly will come precentered. Once installed, pull the tab and remove.
8. If the SIR coil assembly is completely off, refer to the upper tilt head component assembly Turn Signal Cancel Cam and Upper Bearing Inner Race - Assemble - Off Vehicle.
9. Install the wire protector into the support bracket.





10. Instal the retaining ring.





11. Install the SIR coil assembly connector (1) to the fused jumper assembly connector (2).
12. Put the wire harness assembly into the wire harness strap (1).





13. Install the steering wheel (1).




14. Install the steering wheel inflator module (3). 15. Enable the SIR system.
