Infl Rst Steering Wheel Module Replacement

Removal Procedure

Caution: Refer to Inflator Module Handling And Storage Caution in Cautions and Notices.

Important: In the event deployment occurs, inspect the coil assembly wire for any signs of the following conditions due to excessive heat:
^ Scorching
^ Melting
^ Other damage

Replace the coil assembly if damage is evident.

1. Turn the ignition to the OFF position.
2. Disable the SIR system.

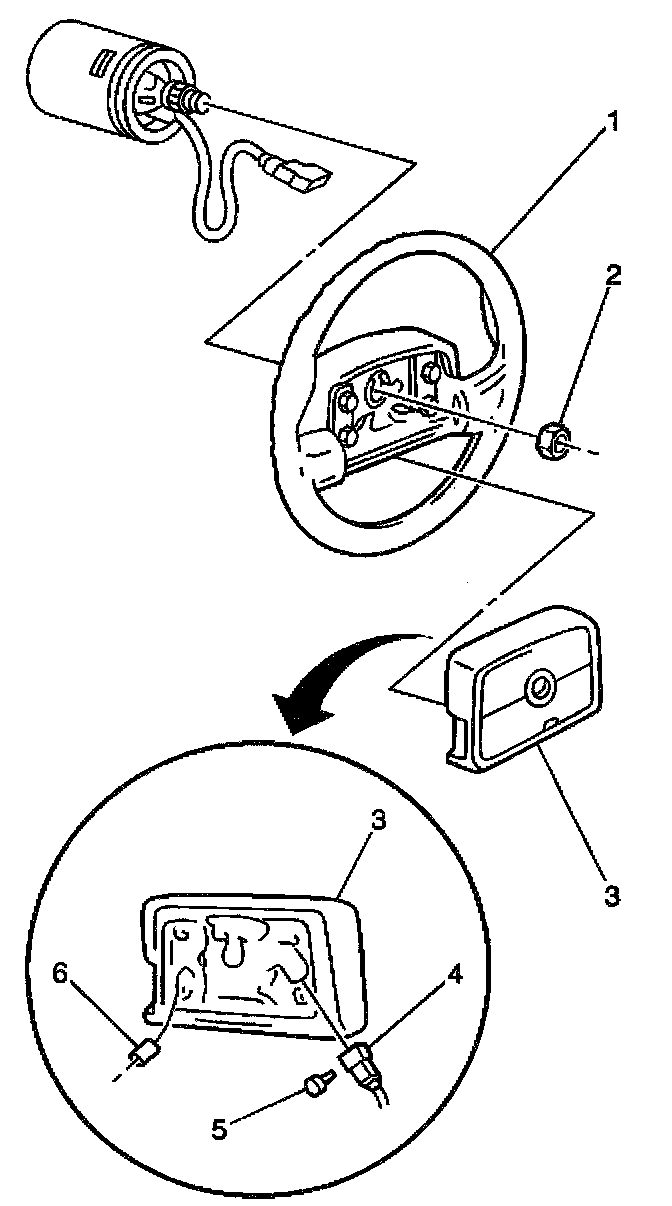

3. Loosen the 4 screws from the back of the steering wheel until the screws are disengaged from the inflator module (3).
4. Remove the Inflatable Restraint Steering Wheel Module (3) from the steering wheel (1).
5. Perform the following steps in order to remove the horn contact:
5.1. Slightly push the horn contact.
5.2. Twist the contact counterclockwise.
6. Disconnect the following components from the inflator module (3).
^ The Connector Position Assurance (CPA) (5).
^ The coil assembly connector (4).

Installation Procedure
1. Install the horn contact to the steering column. Connect the following components to the inflator module (3):
^ The Connector Position Assurance (CPA) (5).
^ The coil assembly connector (4).

2. Install the inflator module (3) to the steering wheel (1).
3. Install the 4 screws to the inflator module (3).

Notice: Refer to Fastener Notice in Cautions and Notices

Important: Ensure that no wires at the back of the inflator module (3) are pinched during the assembly.

4. Align the Inflatable Restraint Steering Wheel Module (3) to the steering wheel (1).

Tighten
Tighten the bolts to 3 N.m (27 lb in).

5. Enable the SIR system.
