Installation Procedure

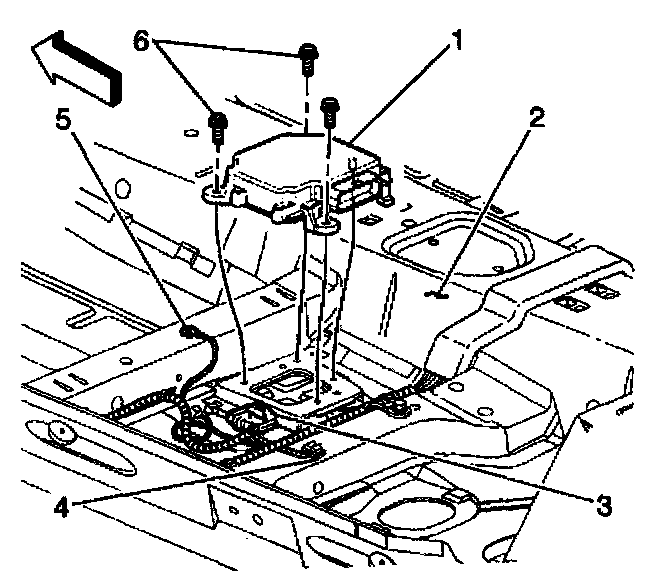

1. Install the SDM (1) to the floor sheetmetal (2).

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the SDM mounting fasteners (6).

Tighten
Tighten fasteners to 9 N.m (80 lb in).

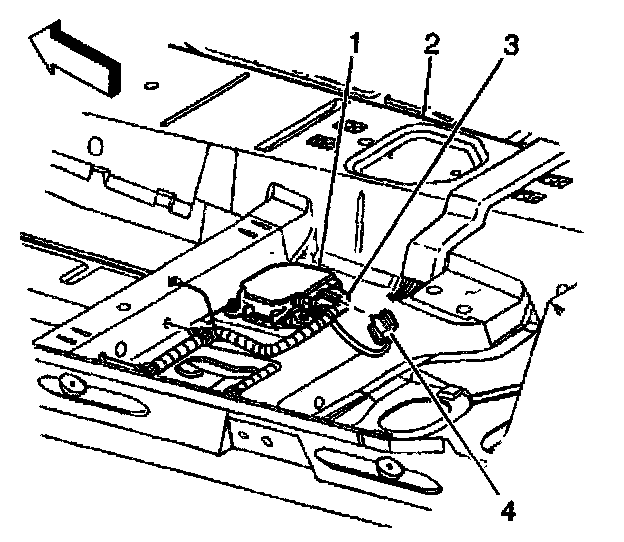

3. Install the SDM harness connector (3) to the SDM (1).

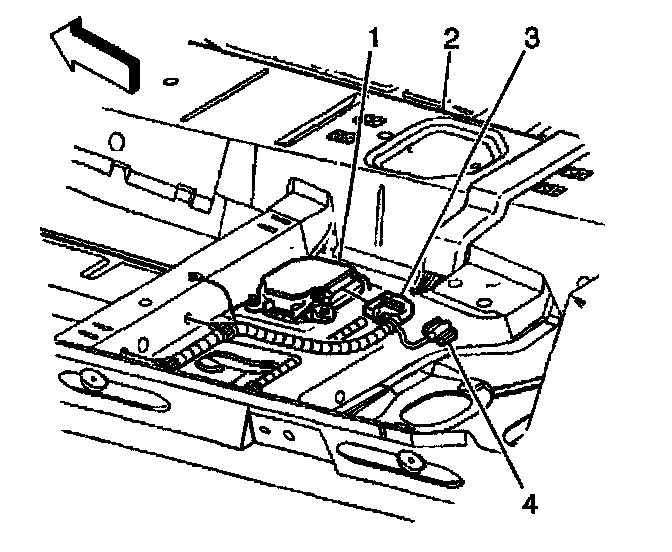

4. Install the Connector Position Assurance (CPA) (4) to the SDM harness (3) connector.
5. Install the right side sill plate.
6. Install the driver seat.
7. Enable the frontal SIR system.
