Fuel Pump Relay: Service and Repair

Description:

REMOVAL PROCEDURE

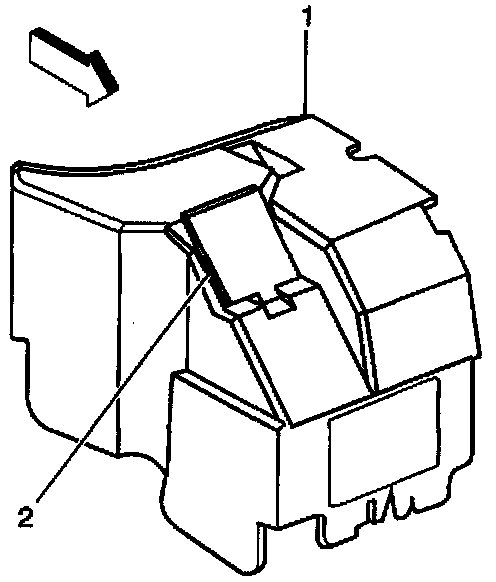

1. Unsnap the multi-use relay fuse cover (2) from the multi-use relay cover (1).
2. Remove the fuel pump relay.

INSTALLATION PROCEDURE
1. Install the new fuel pump relay.
2. Reinstall the fuse cover (2) back to the multi-use relay cover (1).
