Rap Relay Feeds/Battery Protection Circuits
Rap Relay Feeds/Battery Protection Circuits

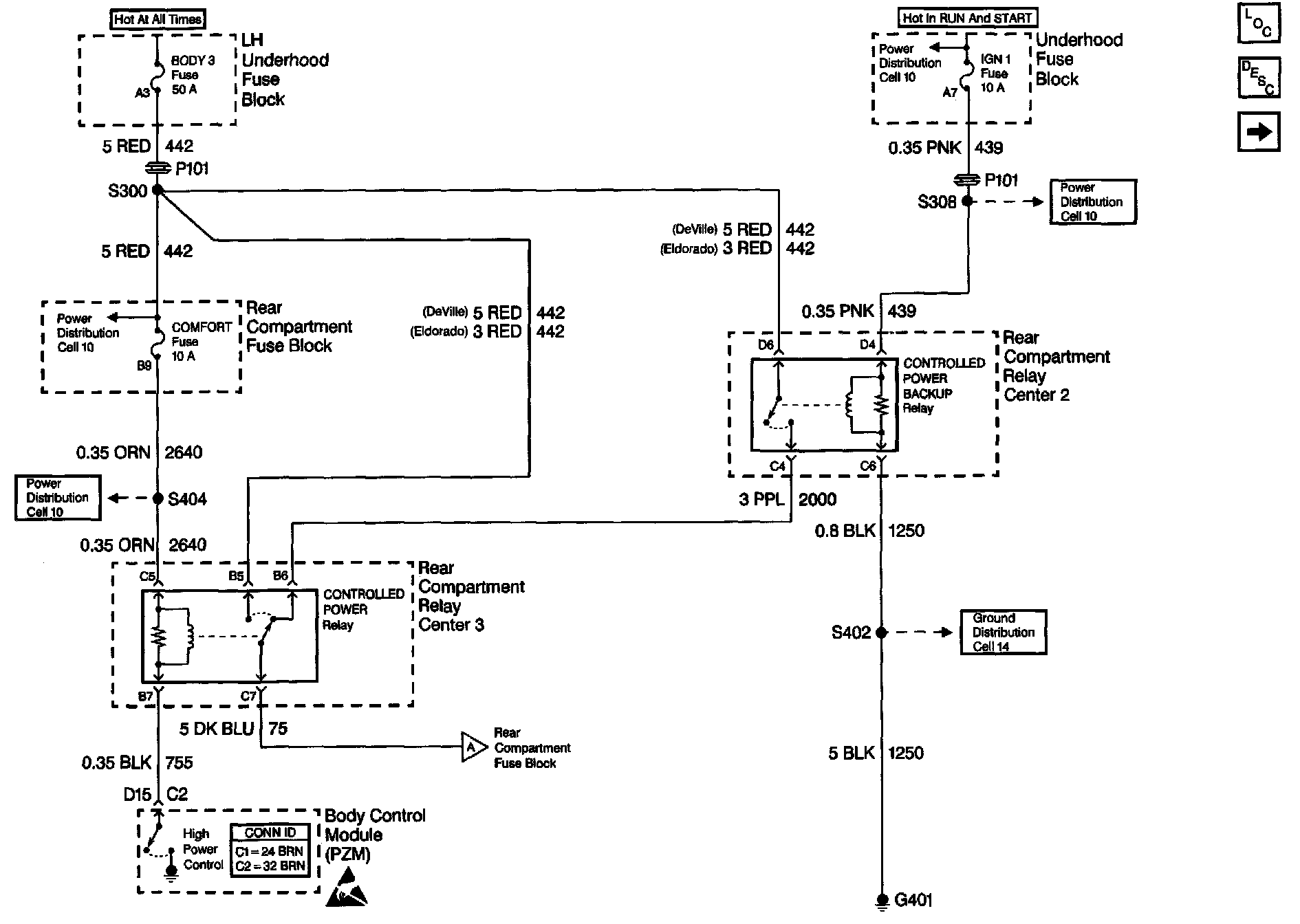

Retained Accessory Power (RAP) Schematics: RAP Relay Feeds/Battery Protection Circuits:
