Electrical Diagrams

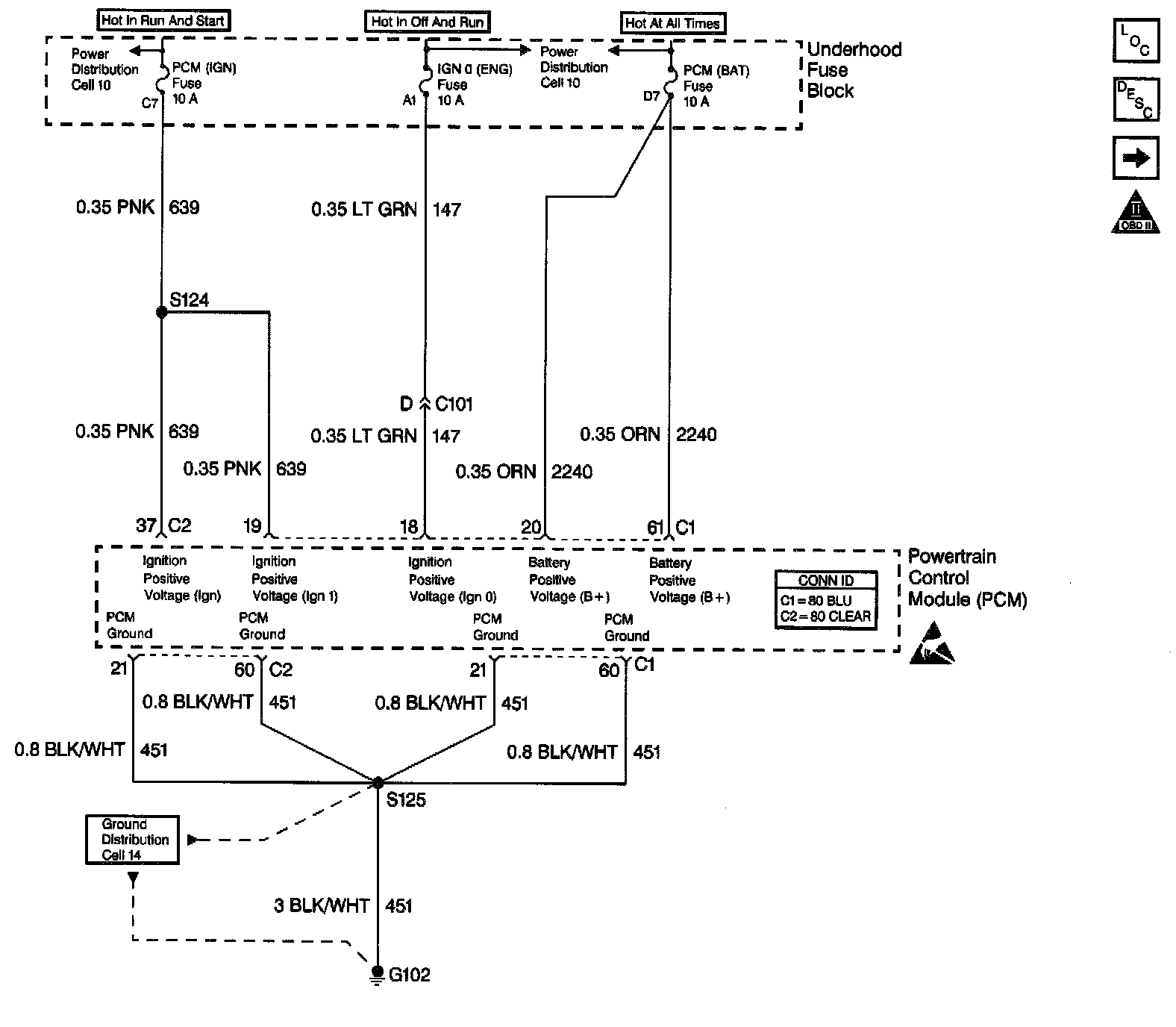

PCM Power and Grounds

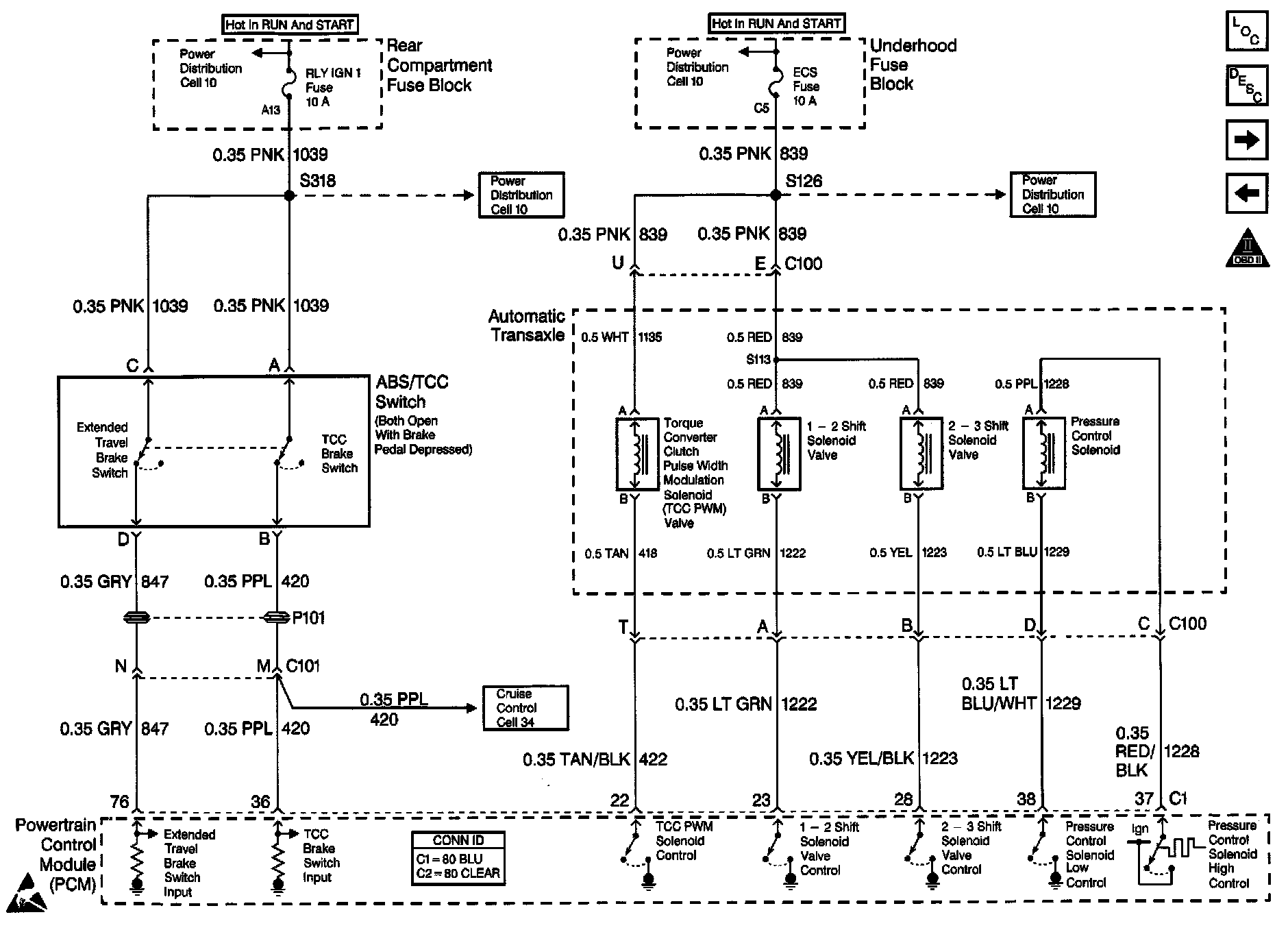

ABS/TCC Switch and Transaxle Solenoids

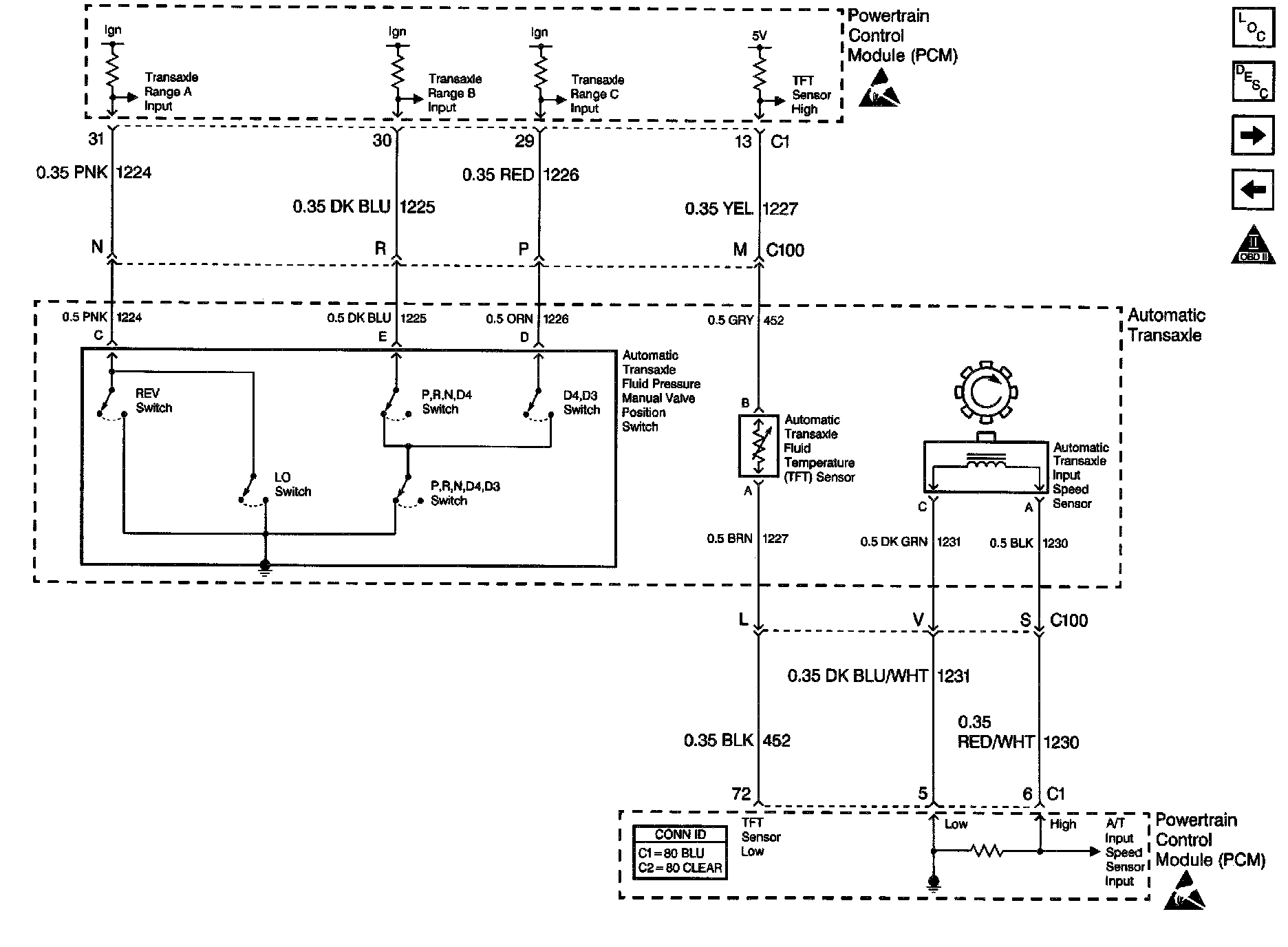

Transaxle Sensors and TR Switch

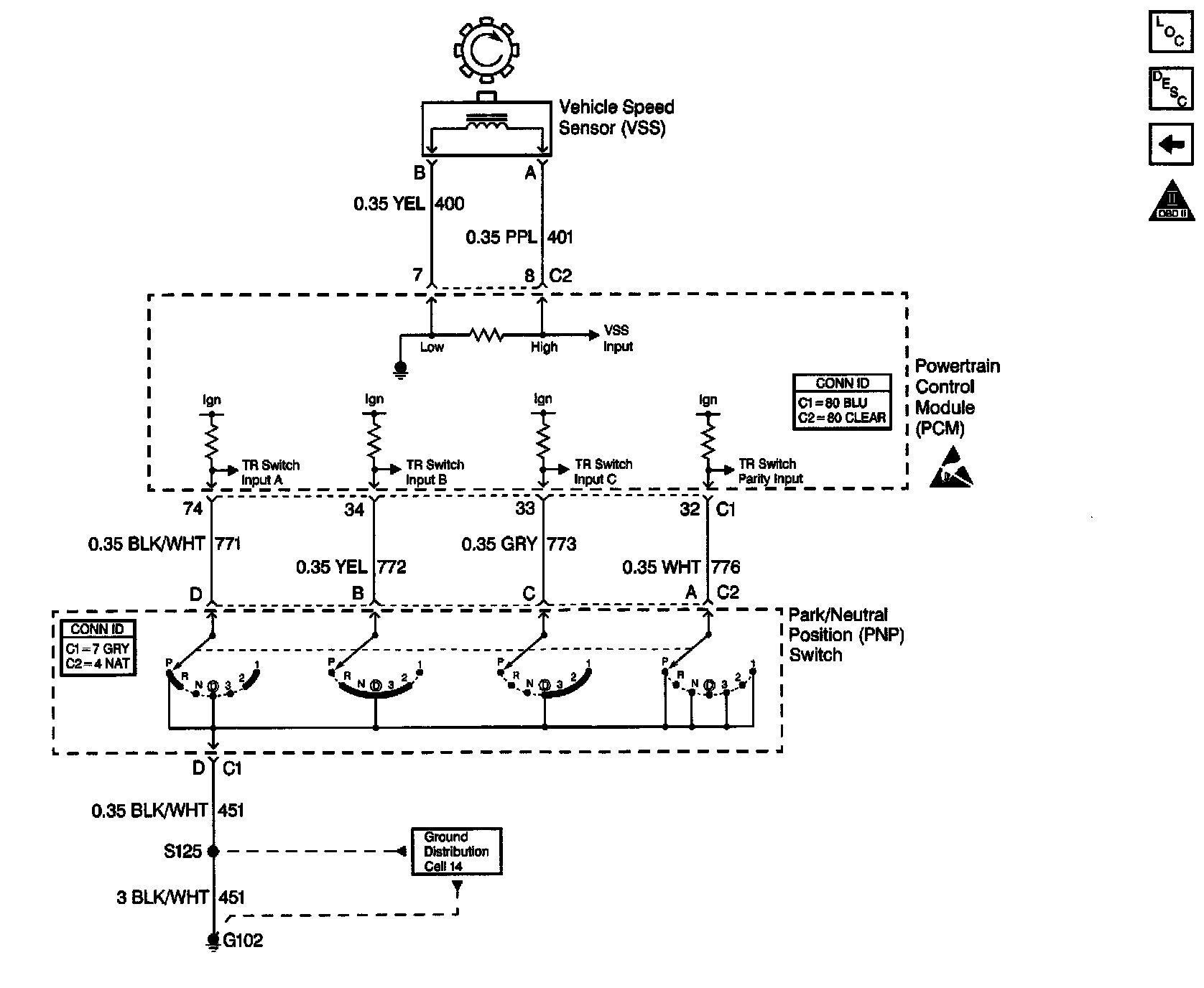

Park/Neutral Position Switch and VSS
