Shift Solenoid: Diagrams

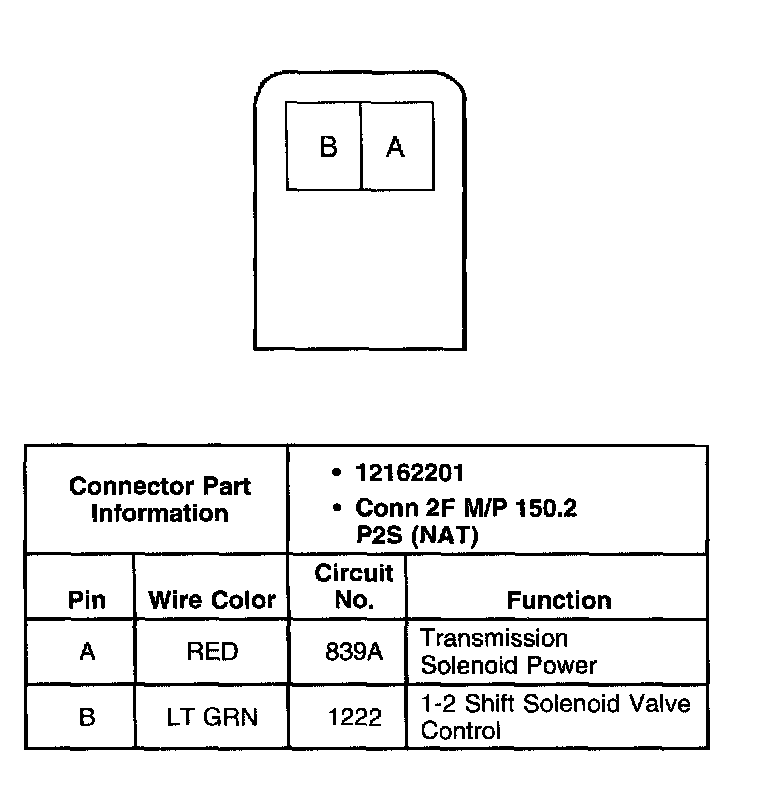

1-2 Shift Solenoid (SS) Valve Connector, Wiring Harness Side

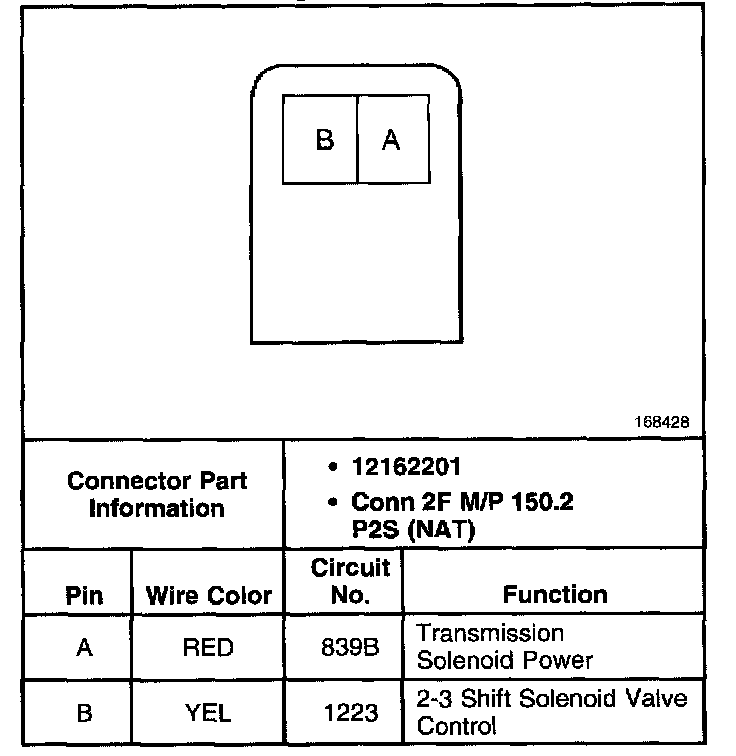

2-3 Shift Solenoid (SS) Valve Connector, Wiring Harness Side
