Shift Interlock Solenoid: Service and Repair

Removal Procedure

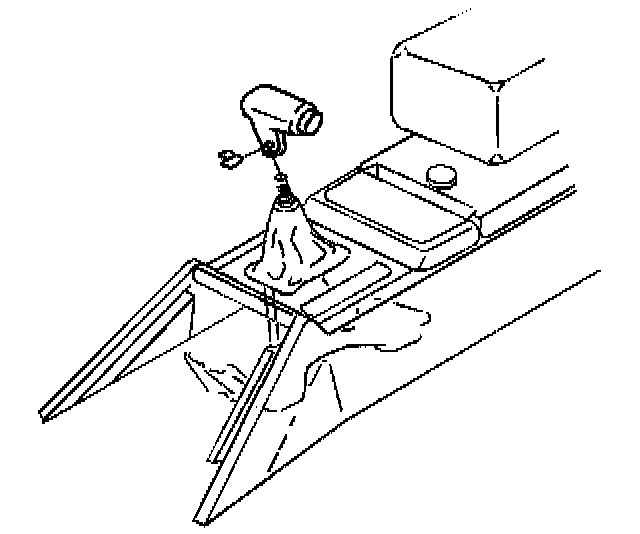

1. Remove the transmission range control knob and the console trim plate.





2. Remove the electrical connector.

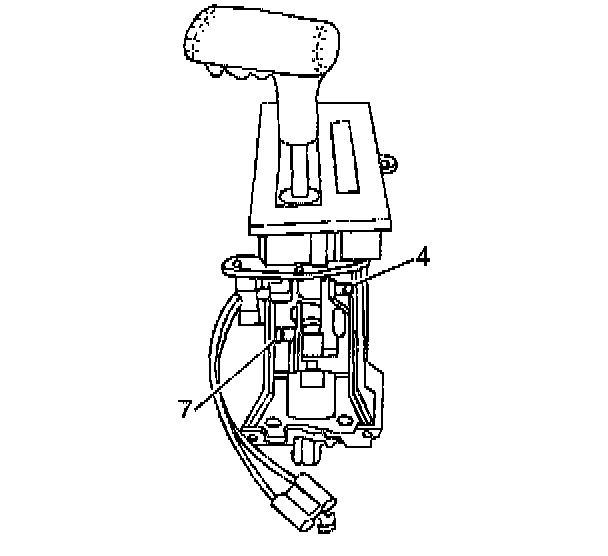

3. Remove the BTSI solenoid at the range control lever assembly.

Installation Procedure





1. Install the BTSI solenoid at the range control lever assembly.
2. Install the electrical connector.





3. Install the console trim plate and the transmission range control knob.
