Knock Sensor Module: Service and Repair

REMOVAL PROCEDURE

Knock Sensor Module Service:

1. Remove the PCM from the vehicle.
2. Remove the two KS Module cover screws and the KS Module cover.

Knock Sensor Removal/Installation:

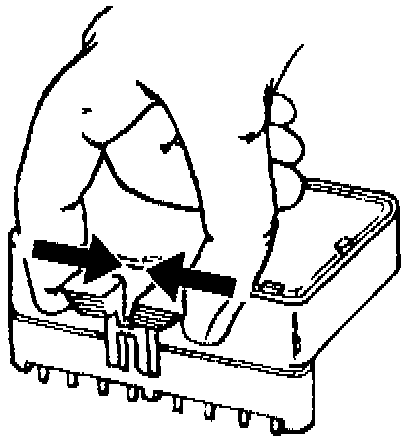

3. Grasp the KS Module tabs with your thumb and finger.
4. Squeeze the tabs together.
5. Pull the KS Module straight up.

INSTALLATION PROCEDURE

Knock Sensor Module Service:

1. Remove the two KS modules cover screws and remove cover (if not previously removed).

Knock Sensor Removal/Installation:

2. Hold the KS Module with your thumb and finger.
3. Insert the KS Module straight down into the PCM through the access opening.
4. Press the KS Module firmly into the PCM connector.

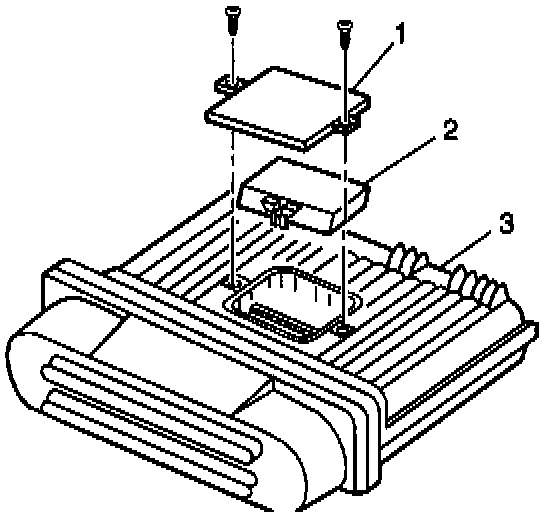

IMPORTANT: Ensure there is a good seal between access cover (1) and the PCM (3).

Knock Sensor Module Service:

5. Place the KS Module cover (1) on the PCM (3).

NOTE: Refer to Fastener Notice in Service Precautions.

6. Install the two cover screws.

Tighten
Tighten the cover screws to 5.1 N.m (45 lb in).

7. Install the PCM.
