General Description

Fuel And EVAP Pipes:

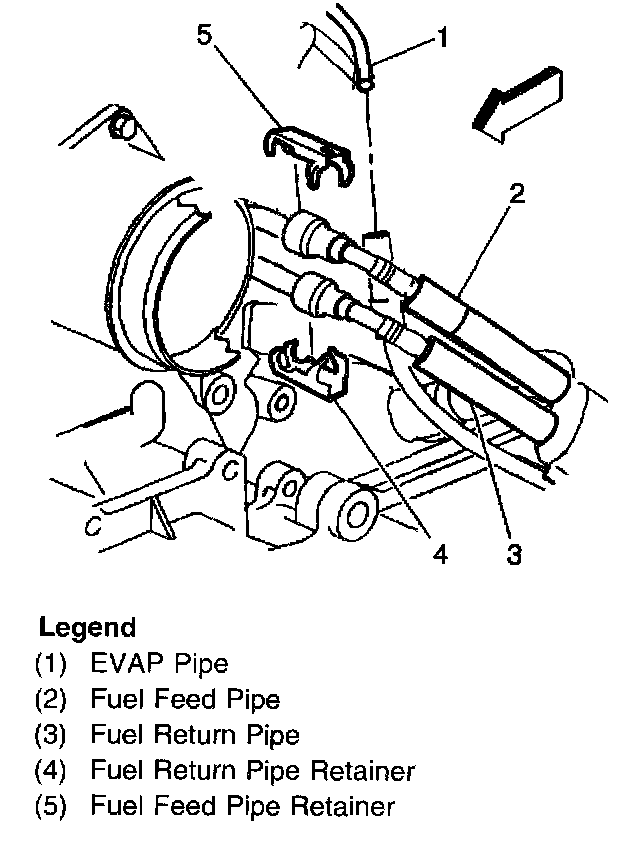

The fuel feed, return, pipes carry fuel to and from the fuel rail as part of the fuel delivery system. The [1][2]EVAP pipes carries fuel vapors for the EVAP components. Retaining clips hold the pipes together and provide a means for attaching the pipes to the vehicle. Quick-connect type fittings are used at the ends of the fuel feed and return and at the in-line fuel filter. Sections of the pipes that are exposed to chafing, high temperature or vibration are protected with heat resistant rubber hose and/or coextruded conduit.
