Fuel Tank

Fuel Tank:

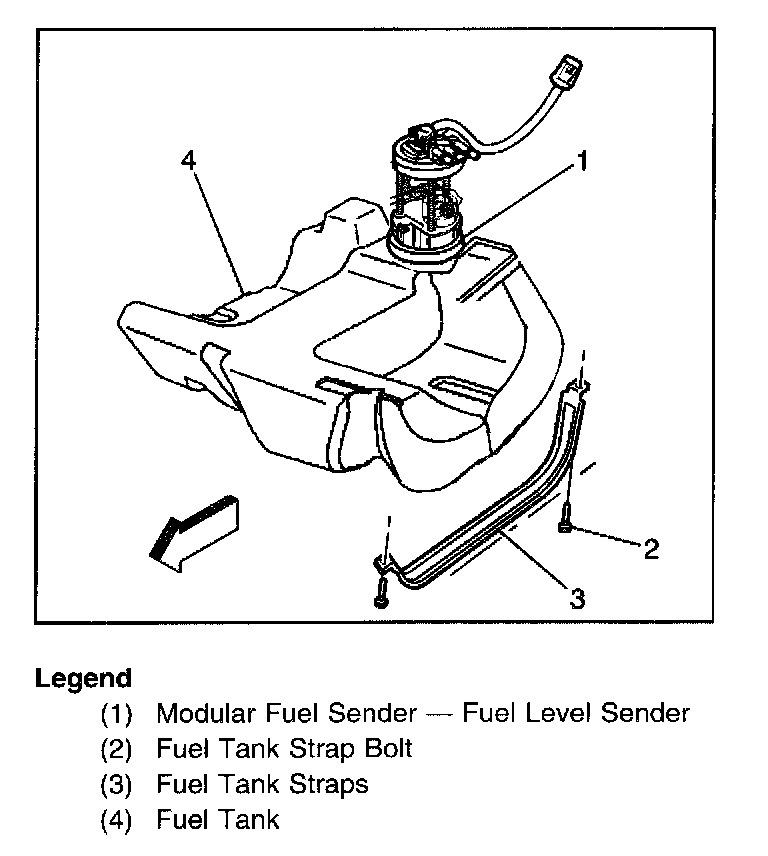

The fuel storage tank is made of high density polyethylene and is located in front of the rear wheels. It is held in place by two metal straps and bolts attached to the under body of the vehicle.

The tank shape includes a sump to maintain a constant supply of fuel around the fuel pump strainer during low fuel conditions or aggressive maneuvers. The tank also contains a fuel vapor vent valve with roll-over protection.

The modular fuel sender is located inside the fuel tank.
