EGR Tube: Service and Repair

REMOVAL PROCEDURE

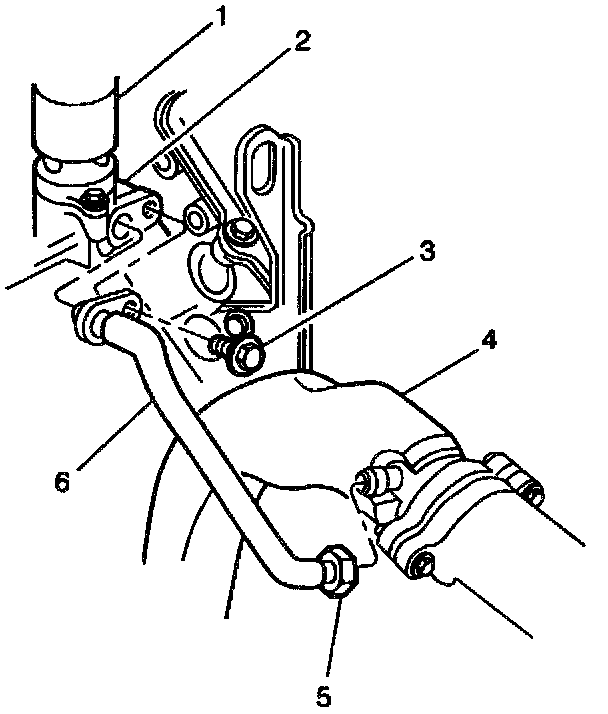

1. Remove bolt at water pump housing (3).
2. Raise and support the vehicle.
3. Remove the Crossover Exhaust Pipe.
4. Remove the nut from Crossover Exhaust Pipe (5).
5. Remove the EGR Valve Pipe (6).

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.

1. Loosely install EGR Pipe Nut to Crossover Exhaust Pipe (5).
2. Install Crossover Exhaust Pipe.

Tighten
Tighten the EGR Pipe Nut to 60 N.m (44 lb ft).

3. Lower the vehicle.
4. Install bolt at waterpump housing (3).

Tighten
Tighten the waterpump housing bolt to 24 N.m (18 lb ft).
